关于授权的过滤器
- AuthorizationFilter：基于类的授权

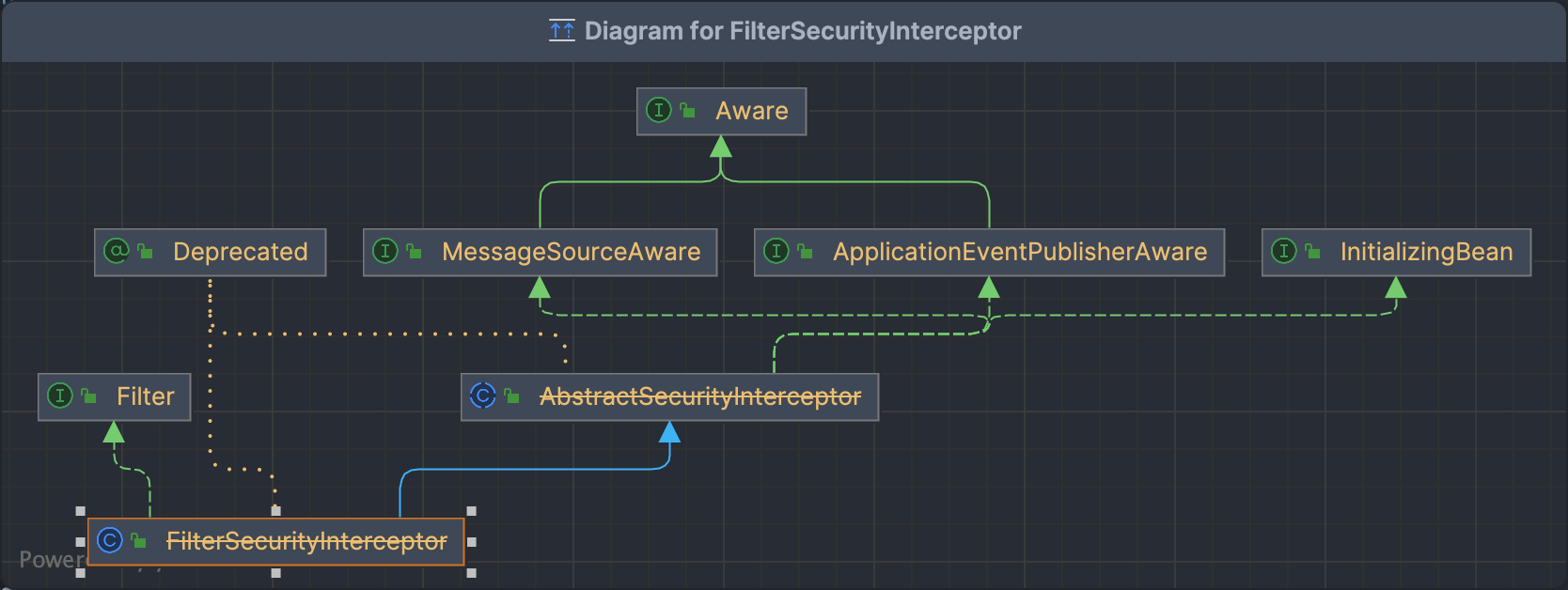

- FilterSecurityInterceptor：基于表达式的授权
AuthorizationFilter及相关类
-
AuthorizationFilter
-
AuthorizationManager
-
AuthorizationDecision
-
AuthorizeHttpRequestsConfigurer
-
RequestAuthorizationContext
-
AuthorizationManagerRequestMatcherRegistry
-
AbstractRequestMatcherRegistry
-
AuthorizedUrl
AuthorizationFilter由AuthorizeHttpRequestsConfigurer构建出来，
属性通过AuthorizeHttpRequestsConfigurer去set进filter，
最终由configurer将filter添加进过滤器链
AuthorizationFilter
doFilter方法
@Override
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain chain)
throws ServletException, IOException {
HttpServletRequest request = (HttpServletRequest) servletRequest;
HttpServletResponse response = (HttpServletResponse) servletResponse;
if (this.observeOncePerRequest && isApplied(request)) {
chain.doFilter(request, response);
return;
}
if (skipDispatch(request)) {
chain.doFilter(request, response);
return;
}
String alreadyFilteredAttributeName = getAlreadyFilteredAttributeName();
request.setAttribute(alreadyFilteredAttributeName, Boolean.TRUE);
try {
//得到授权结果
AuthorizationDecision decision = this.authorizationManager.checkgetAuthentication, request;
this.eventPublisher.publishAuthorizationEventgetAuthentication, request, decision;
if (decision != null && !decision.isGranted()) { //得不到抛异常
throw new AccessDeniedException("Access Denied");
}
chain.doFilter(request, response);
}
finally {
request.removeAttribute(alreadyFilteredAttributeName);
}
}
利用authorizationManager的check方法校验
getAuthentication方法
private Authentication getAuthentication() {
Authentication authentication = this.securityContextHolderStrategy.getContext().getAuthentication();
if (authentication == null) {
throw new AuthenticationCredentialsNotFoundException(
"An Authentication object was not found in the SecurityContext");
}
return authentication;
}
AuthorizationManager
//决策能不能访问T类型的对象
An Authorization manager which can determine if an Authentication has access to a specific object.
Type parameters:
<T> – the type of object that the authorization check is being done on.
@FunctionalInterface
public interface AuthorizationManager<T> {
default void verify(Supplier<Authentication> authentication, T object) {
AuthorizationDecision decision = check(authentication, object);
if (decision != null && !decision.isGranted()) {
throw new AccessDeniedException("Access Denied");
}
}
@Nullable //可以返回null
AuthorizationDecision check(Supplier<Authentication> authentication, T object);
}
check方法
Supplier<\Authentication> authentication：
提供器，可以得到一个authentication，
在AuthorizationFilter类的doFilter方法中被调用：this.authorizationManager.checkgetAuthentication, request
因此改authentication为AuthorizationFilter中getAuthentication方法得到的Authentication
AuthorizationDecision
public class AuthorizationDecision {
private final boolean granted;
public AuthorizationDecision(boolean granted) {
this.granted = granted;
}
public boolean isGranted() {
return this.granted;
}
@Override
public String toString() {
return getClass().getSimpleName() + " [granted=" + this.granted + "]";
}
}
将granted作为一个类AuthorizationDecision的属性而不是直接让check方法返回一个bool值，是为了check方法的可拓展性

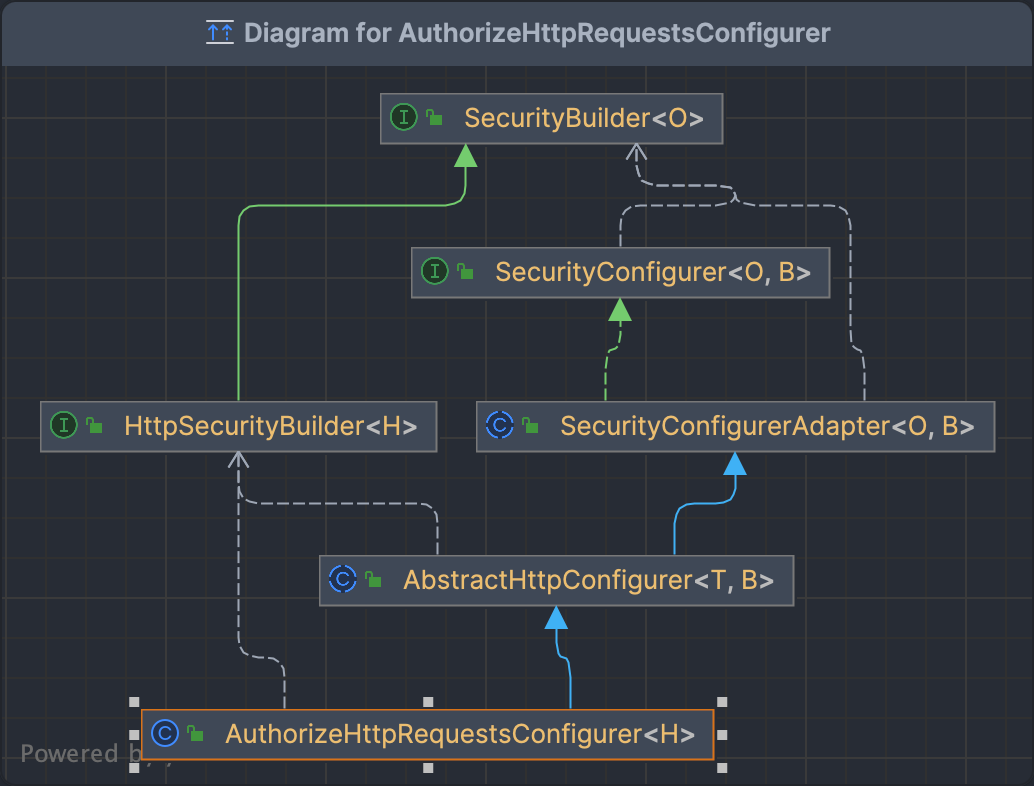

AuthorizeHttpRequestsConfigurer
内部类AuthorizedUrl的configure方法
@Override
public void configure(H http) {
//🐱
AuthorizationManager<HttpServletRequest> authorizationManager = this.registry.createAuthorizationManager();
AuthorizationFilter authorizationFilter = new AuthorizationFilter(authorizationManager);
authorizationFilter.setAuthorizationEventPublisher(this.publisher);
authorizationFilter.setShouldFilterAllDispatcherTypes(this.registry.shouldFilterAllDispatcherTypes);
authorizationFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
http.addFilter(postProcess(authorizationFilter));
}
🐱
通过registry的createAuthorizationManager方法得到一个AuthorizationManager<\HttpServletRequest>
registry的定义为：private final AuthorizationManagerRequestMatcherRegistry registry
addMapping方法
private AuthorizationManagerRequestMatcherRegistry addMapping(List<? extends RequestMatcher> matchers, AuthorizationManager<RequestAuthorizationContext> manager) {
for (RequestMatcher matcher : matchers) {
//循环得到RequestMatcher，调用registry的addMapping方法
this.registry.addMapping(matcher, manager);
}
return this.registry;
}
registry.addMapping(matcher, manager)：
registry为AuthorizationManagerRequestMatcherRegistry类，含有addMapping方法
内部类AuthorizedUrl
access方法
public AuthorizationManagerRequestMatcherRegistry access(
AuthorizationManager<RequestAuthorizationContext> manager) {
Assert.notNull(manager, "manager cannot be null");
return AuthorizeHttpRequestsConfigurer.this.addMapping(this.matchers, manager);
}
参数为AuthorizationManager<RequestAuthorizationContext>：
关于RequestAuthorizationContext类
AuthorizeHttpRequestsConfigurer.this.addMapping(this.matchers, manager)：
通过AuthorizeHttpRequestsConfigurer.this得到父类AuthorizeHttpRequestsConfigurer的对象，然后调用父类的addMapping方法
AuthorizationManagerRequestMatcherRegistry
为AuthorizeHttpRequestsConfigurer的内部类
public final class AuthorizationManagerRequestMatcherRegistry
extends AbstractRequestMatcherRegistry<AuthorizedUrl>

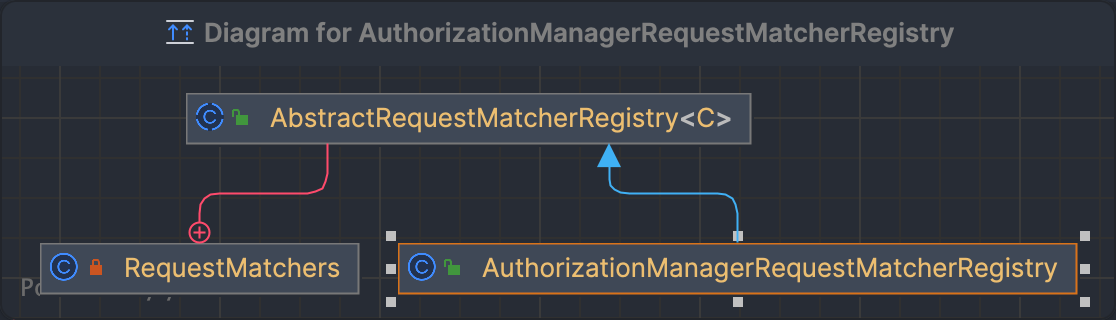

继承了AbstractRequestMatcherRegistry，泛型C为AuthorizedUrl
父类AbstractRequestMatcherRegistry
A base class for registering RequestMatcher's. For example, it might allow for specifying which RequestMatcher require a certain level of authorization.
一个匹配器要匹配什么请求 这个请求需要什么样的授权处理
requestMatchers方法
public C requestMatchers(RequestMatcher... requestMatchers) {
Assert.state(!this.anyRequestConfigured, "Can't configure requestMatchers after anyRequest");
return chainRequestMatchers(Arrays.asList(requestMatchers));
}
public C requestMatchers(HttpMethod method, String... patterns) {
if (!mvcPresent) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
if (!(this.context instanceof WebApplicationContext)) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
WebApplicationContext context = (WebApplicationContext) this.context;
ServletContext servletContext = context.getServletContext();
if (servletContext == null) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
Map<String, ? extends ServletRegistration> registrations = mappableServletRegistrations(servletContext);
if (registrations.isEmpty()) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
if (!hasDispatcherServlet(registrations)) {
return requestMatchers(RequestMatchers.antMatchersAsArray(method, patterns));
}
if (registrations.size() > 1) {
String errorMessage = computeErrorMessage(registrations.values());
throw new IllegalArgumentException(errorMessage);
}
return requestMatchers(createMvcMatchers(method, patterns).toArray(new RequestMatcher[0]));
}
该方法构建出一个或多个RequestMatchers实例，并将对象实例传给chainRequestMatchers
泛型C
public abstract class AbstractRequestMatcherRegistry<\C>
The object that is returned or Chained after creating the RequestMatcher
返回一个对象或者这个对象可以往下链式调用
chainRequestMatchers抽象方法
protected abstract C chainRequestMatchers(List<RequestMatcher> requestMatchers);

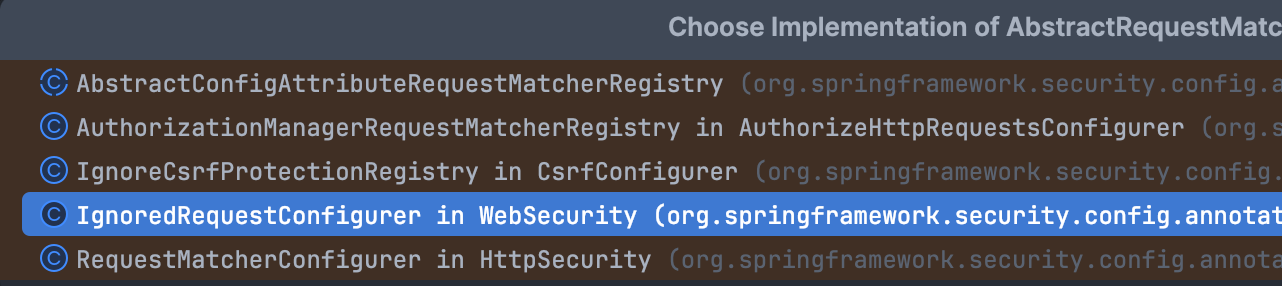

该方法的实现类：
在AuthorizeHttpRequestsConfigurer中的实现
内部类RequestMatchers
antMatchers方法
static List<RequestMatcher> antMatchers(HttpMethod httpMethod, String... antPatterns) {
return Arrays.asList(antMatchersAsArray(httpMethod, antPatterns));
}
static List<RequestMatcher> antMatchers(String... antPatterns) {
return antMatchers(null, antPatterns);
}
static RequestMatcher[] antMatchersAsArray(HttpMethod httpMethod, String... antPatterns) {
String method = (httpMethod != null) ? httpMethod.toString() : null;
// new出来RequestMatcher
RequestMatcher[] matchers = new RequestMatcher[antPatterns.length];
for (int index = 0; index < antPatterns.length; index++) {
matchers[index] = new AntPathRequestMatcher(antPatterns[index], method);
}
return matchers;
}
chainRequestMatchers方法
@Override
protected AuthorizedUrl chainRequestMatchers(List<RequestMatcher> requestMatchers) {
//用类变量unmappedMatchers保存一下
this.unmappedMatchers = requestMatchers;
//返回一个保存着requestMatchers的AuthorizedUrl对象
return new AuthorizedUrl(requestMatchers);
}
返回一个AuthorizedUrl的实例
addMapping
private void addMapping(RequestMatcher matcher, AuthorizationManager<RequestAuthorizationContext> manager) {
this.unmappedMatchers = null;
this.managerBuilder.add(matcher, manager);
this.mappingCount++;
}
调用managerBuilder的add方法，在managerBuilder中维护了一堆映射
属性managerBuilder的定义：
private final RequestMatcherDelegatingAuthorizationManager.Builder managerBuilder = RequestMatcherDelegatingAuthorizationManager
.builder();
关于RequestMatcherDelegatingAuthorizationManager类及其内部类Builder
RequestMatcherDelegatingAuthorizationManager
属性mappings
private final List<RequestMatcherEntry<AuthorizationManager<RequestAuthorizationContext>>> mappings;
mappings List泛型为RequestMatcherEntry，
RequestMatcherEntry的泛型为AuthorizationManager，即RequestMatcherEntry中的entry属性为AuthorizationManager，
AuthorizationManager泛型为RequestAuthorizationContext。
通过构造方法传入
private RequestMatcherDelegatingAuthorizationManager(
List<RequestMatcherEntry<AuthorizationManager<RequestAuthorizationContext>>> mappings) {
Assert.notEmpty(mappings, "mappings cannot be empty");
this.mappings = mappings;
}
内部类Builder
public static final class Builder {
//维护了和父类一样的mappings
private final List<RequestMatcherEntry<AuthorizationManager<RequestAuthorizationContext>>> mappings = new ArrayList<>();
//add方法直接new一个RequestMatcherEntry加入mappings
public Builder add(RequestMatcher matcher, AuthorizationManager<RequestAuthorizationContext> manager) {
Assert.notNull(matcher, "matcher cannot be null");
Assert.notNull(manager, "manager cannot be null");
this.mappings.add(new RequestMatcherEntry<>(matcher, manager));
return this;
}
//通过使用消费器增加mappings的自定义程度
public Builder mappings(
Consumer<List<RequestMatcherEntry<AuthorizationManager<RequestAuthorizationContext>>>> mappingsConsumer) {
Assert.notNull(mappingsConsumer, "mappingsConsumer cannot be null");
mappingsConsumer.accept(this.mappings);
return this;
}
public RequestMatcherDelegatingAuthorizationManager build() {
return new RequestMatcherDelegatingAuthorizationManager(this.mappings);
}
}
RequestMatcherEntry
public class RequestMatcherEntry<T> {
//维护了两个属性
private final RequestMatcher requestMatcher;
private final T entry;
public RequestMatcherEntry(RequestMatcher requestMatcher, T entry) {
this.requestMatcher = requestMatcher;
this.entry = entry;
}
public RequestMatcher getRequestMatcher() {
return this.requestMatcher;
}
public T getEntry() {
return this.entry;
}
}
RequestAuthorizationContext
维护了两个属性：
private final HttpServletRequest request;
private final Map<String, String> variables;
🌟授权过程
mappings的构建
mapping在添加的过程中，最终会被维护到managerBuilder（属性定义：RequestMatcherDelegatingAuthorizationManager.Builder managerBuilder）中
AuthorizeHttpRequestsConfigurer中维护了属性registry，该属性为AuthorizationManagerRequestMatcherRegistry
AbstractRequestMatcherRegistry为AuthorizationManagerRequestMatcherRegistry的父类，维护了用于创建请求匹配器的方法，最终执行到chainRequestMatchers方法，返回一个保存着List<\RequestMatcher> requestMatchers的AuthorizedUrl对象
在AuthorizedUrl类中，通过hasAnyRole方法得到一个AuthorityAuthorizationManager传给access方法，
然后access方法通过return AuthorizeHttpRequestsConfigurer.this.addMapping(this.matchers,manager);调用AuthorizeHttpRequestsConfigurer的addMapping方法
AuthorizeHttpRequestsConfigurer的addMapping方法通过遍历每个RequestMatcher并调用this.registry的addMapping方法（AuthorizationManagerRequestMatcherRegistry类中）
在this.registry的addMapping方法中，通过调用this.managerBuilder.add(matcher, manager)，执行Builder类（RequestMatcherDelegatingAuthorizationManager的内部类）的add方法，添加至Builder类的属性`private final List<RequestMatcherEntry<AuthorizationManager<\RequestAuthorizationContext>>> mappings = new ArrayList<>();
将mappings添加到RequestMatcherDelegatingAuthorizationManager
在AuthorizedUrl的configure方法中，
执行this.registry.createAuthorizationManager()，
进入该类的createAuthorizationManager方法，执行postProcess(this.managerBuilder.build())，
进入Builder类的build方法，`return new RequestMatcherDelegatingAuthorizationManager(this.mappings)
而RequestMatcherDelegatingAuthorizationManager恰好需要一个mappings
所以最终得到的authorizationManager的类型是RequestMatcherDelegatingAuthorizationManager，该类是真正做授权过程的一个类。
为什么要维护mappings
SpringSecurity定义了一个接口AuthorizationManager<\T>，通过其中的check方法得到一个AuthorizationDecision授权结果，根据结果判断是否有权限，
不同的请求使用不同的requestMatcher来匹配，
匹配好之后用AuthorizationManager的一个实现类AuthorityAuthorizationManager<\T>类真正去判断请求有没有权限
因为不同的请求有不同的manager，所以需要维护很多request到AuthorizationManager的一个映射，
该映射通过类RequestMatcherDelegatingAuthorizationManager implements AuthorizationManager<HttpServletRequest\>中的mappings属性来维护
RequestMatcherDelegatingAuthorizationManager在AuthorizationFilter被维护
在AuthorizationFilter的doFilter方法中执行到this.authorizationManager.checkgetAuthentication, request;时，最终会调用RequestMatcherDelegatingAuthorizationManager中的check方法并将结果返回到doFilter方法中用AuthorizationDecision decision去接收，然后执行后面的处理逻辑
RequestMatcherDelegatingAuthorizationManage类中check方法的逻辑
真正执行授权逻辑的为RequestMatcherDelegatingAuthorizationManage类
该类的check方法通过遍历mappings拿到每一个mapping的requestMatcher，然后用requestMatcher来匹配request
如果匹配就通过mapping.getEntry拿到真正用来干活的AuthorizationManager<RequestAuthorizationContext> manager，然后调用manager. check(authentication,new RequestAuthorizationContext (request, matchResult.getVariables()))，其中matchResult.getVariables()为请求里面的模版变量
如果不匹配就返回null
配置
http.authorizeHttpRequests(author -> author.requestMatchers("/admin/**").hasRole("ADMIN"))
config类中通过httpSecurity.authorizeHttpRequest()得到AuthorizeHttpRequestsConfigurer的registry，
@Deprecated(since = "6.1", forRemoval = true)
public AuthorizeHttpRequestsConfigurer<HttpSecurity>.AuthorizationManagerRequestMatcherRegistry authorizeHttpRequests()
throws Exception {
ApplicationContext context = getContext();
//得到registry，即AuthorizationManagerRequestMatcherRegistry
return getOrApply(new AuthorizeHttpRequestsConfigurer<>(context)).getRegistry();
}
然后我们就可以调用AuthorizationManagerRequestMatcherRegistry中的方法，
例如.antMatchers，此时返回一个AuthorizedUrl，我们可以继续调用AuthorizedUrl中的方法，
例如hasRole，此时又回返回一个registry
FilterSecurityInterceptor及其相关类
-
FilterSecurityInterceptor
-
AbstractSecurityInterceptor
-
FilterInvocation
-
ConfigAttribute
-
SecurityConfig
-
WebExpressionConfigAttribute
-
SecurityExpressionHandler
-
AbstractInterceptUrlConfigurer
-
UrlAuthorizationConfigurer
-
ExpressionUrlAuthorizationConfigurer
-
AbstractInterceptUrlRegistry
-

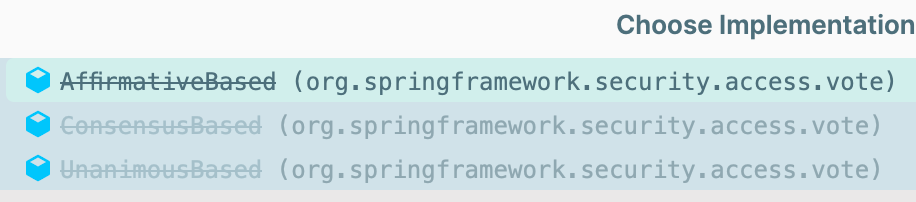

AccessDecisionManager
-
AccessDecisionVoter
-
AffirmativeBased
FilterSecurityInterceptor
doFilter方法
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
invoke(new FilterInvocation(request, response, chain));
}
invoke方法
public void invoke(FilterInvocation filterInvocation) throws IOException, ServletException {
if (isApplied(filterInvocation) && this.observeOncePerRequest) {
filterInvocation.getChain().doFilter(filterInvocation.getRequest(), filterInvocation.getResponse());
return;
}
// first time this request being called, so perform security checking
if (filterInvocation.getRequest() != null && this.observeOncePerRequest) {
filterInvocation.getRequest().setAttribute(FILTER_APPLIED, Boolean.TRUE);
}
InterceptorStatusToken token = super.beforeInvocation(filterInvocation);
try {
filterInvocation.getChain().doFilter(filterInvocation.getRequest(), filterInvocation.getResponse());
}
finally {
super.finallyInvocation(token);
}
super.afterInvocation(token, null);
}
beforeInvocation方法
该方法的核心逻辑。调用父类AbstractSecurityInterceptor的beforeInvocation(filterInvocation)方法，返回一个InterceptorStatusToken token
finallyInvocation方法
afterInvocation方法
obtainSecurityMetadataSource方法
private FilterInvocationSecurityMetadataSource securityMetadataSource;
public SecurityMetadataSource obtainSecurityMetadataSource() {
return this.securityMetadataSource;
}
FilterInvocationSecurityMetadataSource
public interface FilterInvocationSecurityMetadataSource extends SecurityMetadataSource {
}

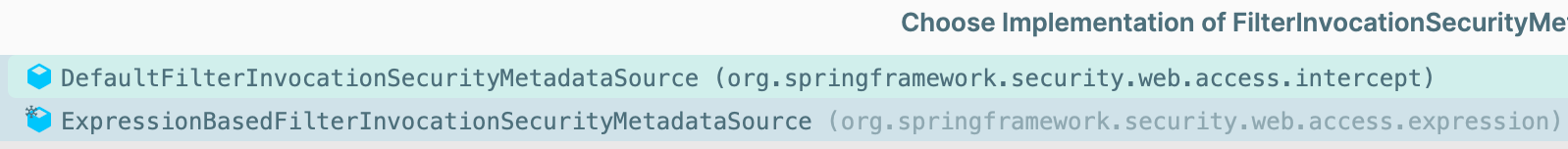

实现类
AbstractSecurityInterceptor
beforeInvocation方法
//Object为安全对象
protected InterceptorStatusToken beforeInvocation(2️⃣Object object) {
Assert.notNull(object, "Object was null");
//如果拿到的不是FilterInvocation，就直接报错
if (!getSecureObjectClass().isAssignableFrom(object.getClass())) {
throw new IllegalArgumentException("Security invocation attempted for object " + object.getClass().getName()
+ " but AbstractSecurityInterceptor only configured to support secure objects of type: "
+ getSecureObjectClass());
}
//5️⃣
Collection<ConfigAttribute> attributes = this.obtainSecurityMetadataSource().getAttributes(object);
if (CollectionUtils.isEmpty(attributes)) {
Assert.isTrue(!this.rejectPublicInvocations,
() -> "Secure object invocation " + object
+ " was denied as public invocations are not allowed via this interceptor. "
+ "This indicates a configuration error because the "
+ "rejectPublicInvocations property is set to 'true'");
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Authorized public object %s", object));
} publishEvent(new PublicInvocationEvent(object));
return null; // no further work post-invocation
}
if (this.securityContextHolderStrategy.getContext().getAuthentication() == null) {
credentialsNotFound(this.messages.getMessage("AbstractSecurityInterceptor.authenticationNotFound",
"An Authentication object was not found in the SecurityContext"), object, attributes);
}
//该方法：如果Authentication就去认证一下，返回一个认证后的Authentication
Authentication authenticated = authenticateIfRequired();
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Authorizing %s with attributes %s", object, attributes));
} // Attempt authorization
//4️⃣真正尝试授权的方法
attemptAuthorization(object, attributes, authenticated);
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Authorized %s with attributes %s", object, attributes));
} if (this.publishAuthorizationSuccess) {
publishEvent(new AuthorizedEvent(object, attributes, authenticated));
}
// Attempt to run as a different user
//1️⃣
Authentication runAs = this.runAsManager.buildRunAs(authenticated, object, attributes);
if (runAs != null) {
//替换我们的context
SecurityContext origCtx = this.securityContextHolderStrategy.getContext();
SecurityContext newCtx = this.securityContextHolderStrategy.createEmptyContext();
newCtx.setAuthentication(runAs);
this.securityContextHolderStrategy.setContext(newCtx);
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Switched to RunAs authentication %s", runAs));
} // need to revert to token.Authenticated post-invocation
return new InterceptorStatusToken(origCtx, true, attributes, object);
} this.logger.trace("Did not switch RunAs authentication since RunAsManager returned null");
// no further work post-invocation
//3️⃣
return new InterceptorStatusToken(this.securityContextHolderStrategy.getContext(), false, attributes, object);
}
1️⃣RunAsManager
可以将我们的Authentication变为RunAsUserToken（根据传入的attributes信息构建），是一种拥有特殊权限或角色信息的Authentication，可以使我们变相的去访问某些资源
在FilterSecurityInterceptor的invoke方法的finallyInvocation中被复原回原来的Authentication
2️⃣Object类型参数
Object类型参数为securityObject，即安全对象。此处为FilterInvocation
3️⃣InterceptorStatusToken
public class InterceptorStatusToken {
private SecurityContext securityContext;
private Collection<ConfigAttribute> attr;
//安全对象
private Object secureObject;
//SecurityContext如果被替换，则为true，未被替换则为false
private boolean contextHolderRefreshRequired;
......
4️⃣attemptAuthorization方法
private void attemptAuthorization(Object object, Collection<ConfigAttribute> attributes,
Authentication authenticated) {
try {
//
this.accessDecisionManager.decide(authenticated, object, attributes);
} catch (AccessDeniedException ex) {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Failed to authorize %s with attributes %s using %s", object,
attributes, this.accessDecisionManager));
} else if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Failed to authorize %s with attributes %s", object, attributes));
} publishEvent(new AuthorizationFailureEvent(object, attributes, authenticated, ex));
throw ex;
}}
this.accessDecisionManager.decide(authenticated, object, attributes);
5️⃣SecurityMetadataSource
obtainSecurityMetadataSource属性为SecurityMetadataSource类
存储一堆安全属性
public interface SecurityMetadataSource extends AopInfrastructureBean {
//获取跟Object相关的一些配置信息
Collection<ConfigAttribute> getAttributes(Object object) throws IllegalArgumentException;
Collection<ConfigAttribute> getAllConfigAttributes();
//传一个类过来，判断支不支持返回这个类对应的配置信息。该类为getAttributes(Object object)中object的父类
boolean supports(Class<?> clazz);
}
关于ConfigAttribute
obtainSecurityMetadataSource抽象方法
public abstract SecurityMetadataSource obtainSecurityMetadataSource();

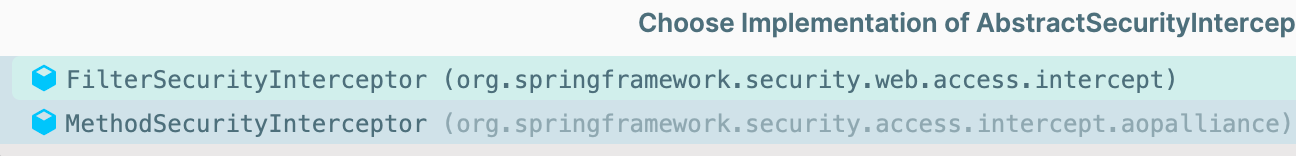

实现类
在FilterSecurityInterceptor中的实现
finallyInvocation方法
复原beforeInvocation方法中RunAsManager改变的Authentication
afterInvocation方法
protected Object afterInvocation(InterceptorStatusToken token, Object returnedObject) {
if (token == null) {
//直接返回。在其实现类中可能会走这个分支
// public object
return returnedObject;
}
//再次调用finallyInvocation
//原因：有可能我们自定义实现的时候不会走invoke方法中的finally，但是Spring要保证一定会调用finallyInvocation方法来复原可能在beforeInvocation被RunAsManager改变的SecurityContext，防止安全隐患
finallyInvocation(token); // continue to clean in this method for passivity
//此时afterInvocationManager为空
//在注解实现权限的时候会用到，过滤器实现的时候为null
if (this.afterInvocationManager != null) {
// Attempt after invocation handling
try {
returnedObject = this.afterInvocationManager.decide(token.getSecurityContext().getAuthentication(),
token.getSecureObject(), token.getAttributes(), returnedObject);
} catch (AccessDeniedException ex) {
publishEvent(new AuthorizationFailureEvent(token.getSecureObject(), token.getAttributes(),
token.getSecurityContext().getAuthentication(), ex));
throw ex;
} } return returnedObject;
}
FilterInvocation
封装了三个属性
private FilterChain chain;
private HttpServletRequest request;
private HttpServletResponse response;
ConfigAttribute
必须是一个String，且可以表明所要表达的权限的意思（就是一个权限信息）
可以被RunAsManager, AccessDecisionManager or AccessDecisionManager delegate使用
public interface ConfigAttribute extends Serializable {
String getAttribute();
}

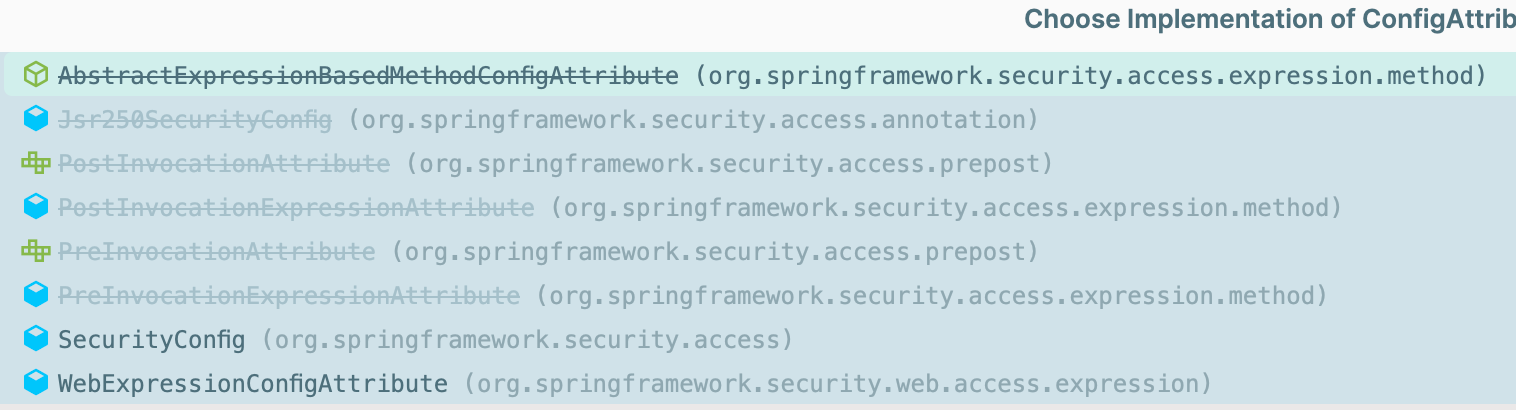

实现类
FilterSecurityInterceptor授权逻辑
FilterSecurityInterceptor的invoke方法
-> AbstractSecurityInterceptor的beforeInvocation方法
-> AbstractSecurityInterceptor的attemptAuthorization方法
-> AccessDecisionManager的decide方法
UrlAuthorizationConfigurer
该类并没有实现init和configure方法
getDecisionVoters方法
List<AccessDecisionVoter<?>> getDecisionVoters(H http) {
List<AccessDecisionVoter<?>> decisionVoters = new ArrayList<>();
//根据角色投票
decisionVoters.add(new RoleVoter());
//根据有没有认证去投票
decisionVoters.add(new AuthenticatedVoter());
return decisionVoters;
}
RoleVoter
@Override
public boolean supports(ConfigAttribute attribute) {
//不为空且以_ROLE开头
return (attribute.getAttribute() != null) && attribute.getAttribute().startsWith(getRolePrefix());
}
@Override
public boolean supports(Class<?> clazz) {
return true;
}
@Override
public int vote(Authentication authentication, Object object, Collection<ConfigAttribute> attributes) {
if (authentication == null) {
return ACCESS_DENIED;
}
int result = ACCESS_ABSTAIN;
Collection<? extends GrantedAuthority> authorities = extractAuthorities(authentication);
for (ConfigAttribute attribute : attributes) {
//support方法判断支不支持
if (this.supports(attribute)) {
result = ACCESS_DENIED;
// Attempt to find a matching granted authority
for (GrantedAuthority authority : authorities) {
//有一个属性相同返回同意
if (attribute.getAttribute().equals(authority.getAuthority())) {
return ACCESS_GRANTED;
}
}
}
}
return result;
}
createMetadataSource方法
FilterInvocationSecurityMetadataSource createMetadataSource(H http) {
return new DefaultFilterInvocationSecurityMetadataSource(this.registry.createRequestMap());
}
如何构建DefaultFilterInvocationSecurityMetadataSource类中的requestMap属性
通过传入this.registry.createRequestMap()
private final StandardInterceptUrlRegistry registry;
StandardInterceptUrlRegistry类
为一个注册器，注册请求和请求需要的安全配置的映射的注册器
其中的DefaultFilterInvocationSecurityMetadataSource类
维护了属性requestMap，key为请求匹配器，value为配置属性
object默认为FilterInvocation
public class DefaultFilterInvocationSecurityMetadataSource implements FilterInvocationSecurityMetadataSource {
protected final Log logger = LogFactory.getLog(getClass());
private final Map<RequestMatcher, Collection<ConfigAttribute>> requestMap;
public DefaultFilterInvocationSecurityMetadataSource(
LinkedHashMap<RequestMatcher, Collection<ConfigAttribute>> requestMap) {
this.requestMap = requestMap;
}
@Override
public Collection<ConfigAttribute> getAllConfigAttributes() {
Set<ConfigAttribute> allAttributes = new HashSet<>();
this.requestMap.valuesaddAll;
return allAttributes;
}
@Override
public Collection<ConfigAttribute> getAttributes(Object object) {
//本类中object默认为 FilterInvocation
final HttpServletRequest request = ((FilterInvocation) object).getRequest();
int count = 0;
for (Map.Entry<RequestMatcher, Collection<ConfigAttribute>> entry : this.requestMap.entrySet()) {
//判断能不能匹配请求
if (entry.getKey().matches(request)) {
return entry.getValue();
} else {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Did not match request to %s - %s (%d/%d)", entry.getKey(),
entry.getValue(), ++count, this.requestMap.size()));
}
}
}
return null;
}
@Override
public boolean supports(Class<?> clazz) {
return FilterInvocation.class.isAssignableFrom(clazz);
}
}
父类AbstractInterceptUrlConfigurer
configure方法
public void configure(H http) throws Exception {
//保存对请求的权限处理的配置
FilterInvocationSecurityMetadataSource metadataSource = createMetadataSource(http);
if (metadataSource == null) {
return;
}
//创建一个FilterSecurityInterceptor
FilterSecurityInterceptor securityInterceptor = createFilterSecurityInterceptor(http, metadataSource,
http.getSharedObject(AuthenticationManager.class));
if (this.filterSecurityInterceptorOncePerRequest != null) {
securityInterceptor.setObserveOncePerRequest(this.filterSecurityInterceptorOncePerRequest);
} securityInterceptor = postProcess(securityInterceptor);
http.addFilter(securityInterceptor);
http.setSharedObject(FilterSecurityInterceptor.class, securityInterceptor);
}
在createFilterSecurityInterceptor方法中构建FilterSecurityInterceptor
在createMetadataSource中构建FilterInvocationSecurityMetadataSource
本类中有抽象方法abstract FilterInvocationSecurityMetadataSource createMetadataSource(H http);
在UrlAuthorizationConfigurer中的实现
createFilterSecurityInterceptor方法
private FilterSecurityInterceptor createFilterSecurityInterceptor(H http,
FilterInvocationSecurityMetadataSource metadataSource, AuthenticationManager authenticationManager)
throws Exception {
//直接new
FilterSecurityInterceptor securityInterceptor = new FilterSecurityInterceptor();
securityInterceptor.setSecurityMetadataSource(metadataSource);
//调用getAccessDecisionManager
securityInterceptor.setAccessDecisionManager(getAccessDecisionManager(http));
securityInterceptor.setAuthenticationManager(authenticationManager);
securityInterceptor.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
securityInterceptor.afterPropertiesSet();
return securityInterceptor;
}
getAccessDecisionManager方法
private AccessDecisionManager getAccessDecisionManager(H http) {
if (this.accessDecisionManager == null) {
//调用 createDefaultAccessDecisionManager方法
this.accessDecisionManager = createDefaultAccessDecisionManager(http);
} return this.accessDecisionManager;
}
createDefaultAccessDecisionManager方法
private AccessDecisionManager createDefaultAccessDecisionManager(H http) {
AffirmativeBased result = new AffirmativeBased(getDecisionVoters(http));
return postProcess(result);
}
关于AffirmativeBased
关于AccessDecisionManager
getDecisionVoters抽象方法
通过getDecisionVoters方法获取投票器
abstract List<AccessDecisionVoter<?>> getDecisionVoters(H http);
实现类
在UrlAuthorizationConfigurer中的实现
AccessDecisionManager
判断有没有权限去访问资源
抽象实现类AbstractAccessDecisionManager
private boolean allowIfAllAbstainDecisions = false;
如果都弃权，能不能访问取决于该属性的值
定义了一堆的private List<AccessDecisionVoter<?>> decisionVoters;
将判断具体实现委派给voter
public interface AccessDecisionVoter<S> {
//三种结果，同意，弃权，拒绝
int ACCESS_GRANTED = 1;
int ACCESS_ABSTAIN = 0;
int ACCESS_DENIED = -1;
boolean supports(ConfigAttribute attribute);
boolean supports(Class<?> clazz);
//通过投票的方式来决定拥有传入的authentication和attributes能不能对object资源进行访问
int vote(Authentication authentication, S object, Collection<ConfigAttribute> attributes);
}
实现类：
分别实现了三种不同的投票规则：一票通过决定，多数通过决定，全部通过决定
实现类AffirmativeBased
decide方法
public void decide(Authentication authentication, Object object, Collection<ConfigAttribute> configAttributes)
throws AccessDeniedException {
int deny = 0;
for (AccessDecisionVoter voter : getDecisionVoters()) {
int result = voter.vote(authentication, object, configAttributes);
switch (result) {
case AccessDecisionVoter.ACCESS_GRANTED:
return;
case AccessDecisionVoter.ACCESS_DENIED:
deny++;
break;
default:
break;
}
}
//有一个拒绝就抛出异常
if (deny > 0) {
throw new AccessDeniedException(
this.messages.getMessage("AbstractAccessDecisionManager.accessDenied", "Access is denied"));
}
// To get this far, every AccessDecisionVoter abstained
//如果弃权，就取决于类中的allowIfAllAbstainDecisions属性
checkAllowIfAllAbstainDecisions();
}
使用Redis持久化时，登录一次Redis中出现两个token的原因：原因
