SecurityContext相关类
- SecurityContext
存有Authentication的一个对象 - SecurityContextHolder
- SecurityContextHolderStrategy
- SecurityContextPersistenceFilter
- SecurityContextHolderFilter
- SecurityContextRepository
- SecurityContextConfigurer
配置过滤器
SecurityContext
存储Authentication的实例就是安全上下文
public interface SecurityContext extends Serializable {
Authentication getAuthentication();
void setAuthentication(Authentication authentication);
}
SecurityContextHolder
SecurityContext的持有器
一些设置context的重要方法
public static void clearContext() {
strategy.clearContext();
}
public static SecurityContext getContext() {
return strategy.getContext();
}
public static void setContext(SecurityContext context) {
strategy.setContext(context);
}
通过strategy属性来实现这些方法
SecurityContextHolder类维护了一个SecurityContextHolderStrategy
private static SecurityContextHolderStrategy strategy;
初始化
类加载后首先执行静态代码块
static {
initialize(); //执行初始化
}
private static void initialize() {
initializeStrategy();
initializeCount++;
}
private static void initializeStrategy() {
//判断策略类是否在初始化之前已经自定义设置好。返回true则直接退出方法
if (MODE_PRE_INITIALIZED.equals(strategyName)) {
Assert.state(strategy != null, "When using " + MODE_PRE_INITIALIZED
+ ", setContextHolderStrategy must be called with the fully constructed strategy");
return;
}
//判断是否空
if (!StringUtils.hasText(strategyName)) {
// Set default
strategyName = MODE_THREADLOCAL; //默认为MODE_THREADLOCAL
}
if (strategyName.equals(MODE_THREADLOCAL)) {
//将strategy默认设置为ThreadLocalSecurityContextHolderStrategy
strategy = new ThreadLocalSecurityContextHolderStrategy();
return;
}
if (strategyName.equals(MODE_INHERITABLETHREADLOCAL)) {
strategy = new InheritableThreadLocalSecurityContextHolderStrategy();
return;
}
if (strategyName.equals(MODE_GLOBAL)) {
strategy = new GlobalSecurityContextHolderStrategy();
return;
}
// Try to load a custom strategy
try {
Class<?> clazz = Class.forName(strategyName);
Constructor<?> customStrategy = clazz.getConstructor();
strategy = (SecurityContextHolderStrategy) customStrategy.newInstance();
}
catch (Exception ex) {
ReflectionUtils.handleReflectionException(ex);
}
}
SecurityContextHolderStrategy
SecurityContextHolder存储SecurityContext的一种策略
public interface SecurityContextHolderStrategy {
void clearContext();
SecurityContext getContext();
default Supplier<SecurityContext> getDeferredContext() {
return () -> getContext();
}
void setContext(SecurityContext context);
default void setDeferredContext(Supplier<SecurityContext> deferredContext) {
setContext(deferredContext.get());
}
SecurityContext createEmptyContext();
}

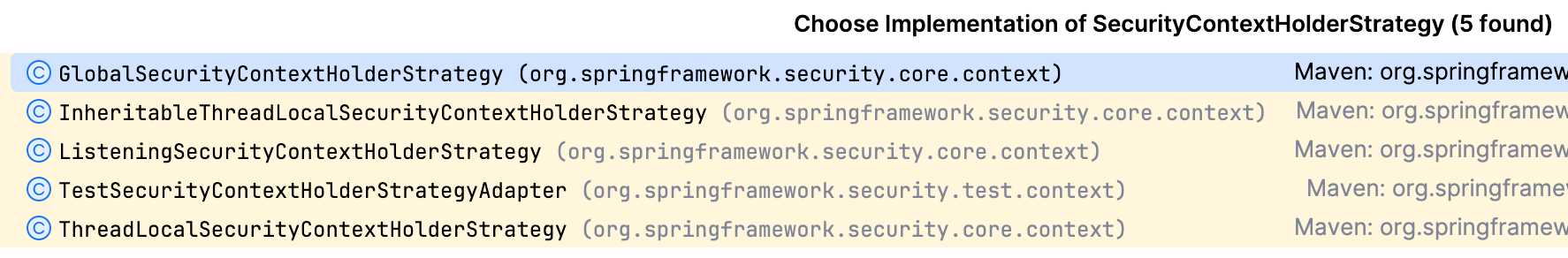

实现类：
主要使用ThreadLocalSecurityContextHolderStrategy
一个变量对一个线程共享，对不同线程不共享
final class ThreadLocalSecurityContextHolderStrategy implements SecurityContextHolderStrategy {
private static final ThreadLocal<Supplier<SecurityContext>> contextHolder = new ThreadLocal<>();
@Override
public void clearContext() {
contextHolder.remove();
}
@Override
public SecurityContext getContext() {
return getDeferredContext().get();
}
@Override
public Supplier<SecurityContext> getDeferredContext() {
Supplier<SecurityContext> result = contextHolder.get();
if (result == null) {
SecurityContext context = createEmptyContext();
result = () -> context;
contextHolder.set(result);
}
return result;
}
@Override
public void setContext(SecurityContext context) {
Assert.notNull(context, "Only non-null SecurityContext instances are permitted");
contextHolder.set(() -> context);
}
@Override
public void setDeferredContext(Supplier<SecurityContext> deferredContext) {
Assert.notNull(deferredContext, "Only non-null Supplier instances are permitted");
Supplier<SecurityContext> notNullDeferredContext = () -> {
SecurityContext result = deferredContext.get();
Assert.notNull(result, "A Supplier<SecurityContext> returned null and is not allowed.");
return result;
};
contextHolder.set(notNullDeferredContext);
}
@Override
public SecurityContext createEmptyContext() {
return new SecurityContextImpl(); //是SecurityContext的默认实现
}
}
SecurityContextRepository
用于持久化SecurityContext
常常自定义SecurityContextRepository，通过内存数据库来进行持久化
public interface SecurityContextRepository {
@Deprecated
SecurityContext loadContext(HttpRequestResponseHolder requestResponseHolder);
//获取
default DeferredSecurityContext loadDeferredContext(HttpServletRequest request) {
Supplier<SecurityContext> supplier = () -> loadContext(new HttpRequestResponseHolder(request, null));
return new SupplierDeferredSecurityContext(SingletonSupplier.of(supplier),
SecurityContextHolder.getContextHolderStrategy());
}
//保存
void saveContext(SecurityContext context, HttpServletRequest request, HttpServletResponse response);
boolean containsContext(HttpServletRequest request);
}

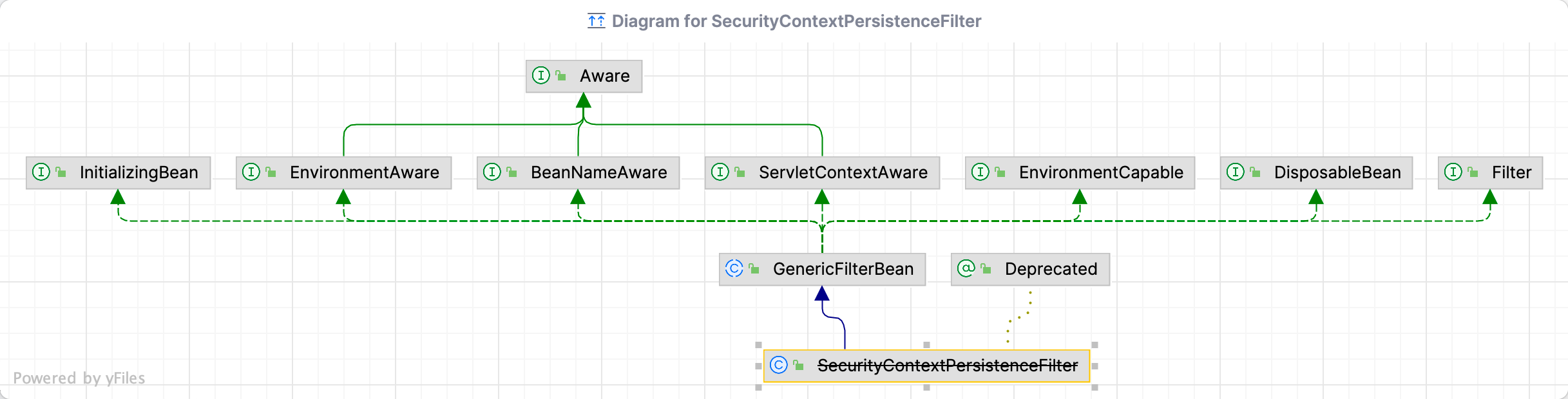

SecurityContextPersistenceFilter
该类已经过时，用SecurityContextHolderFilter代替
doFilter方法
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
// ensure that filter is only applied once per request
//保证每个请求只会进行一次filter
if (request.getAttribute(FILTER_APPLIED) != null) {
chain.doFilter(request, response);
return;
}
request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
if (this.forceEagerSessionCreation) {
HttpSession session = request.getSession();
if (this.logger.isDebugEnabled() && session.isNew()) {
this.logger.debug(LogMessage.format("Created session %s eagerly", session.getId()));
}
}
HttpRequestResponseHolder holder = new HttpRequestResponseHolder(request, response);
SecurityContext contextBeforeChainExecution = this.repo.loadContext(holder);
try {
//调用ThreadLocalSecurityContextHolderStrategy的setContext方法。
//方便后续可以直接可以用securityContextHolderStrategy获取SecurityContext
this.securityContextHolderStrategy.setContext(contextBeforeChainExecution);
if (contextBeforeChainExecution.getAuthentication() == null) {
logger.debug("Set SecurityContextHolder to empty SecurityContext");
}
else {
if (this.logger.isDebugEnabled()) {
this.logger
.debug(LogMessage.format("Set SecurityContextHolder to %s", contextBeforeChainExecution));
}
}
chain.doFilter(holder.getRequest(), holder.getResponse());
}
finally {
SecurityContext contextAfterChainExecution = this.securityContextHolderStrategy.getContext();
// Crucial removal of SecurityContextHolder contents before anything else.
//最后清除Context
this.securityContextHolderStrategy.clearContext();
this.repo.saveContext(contextAfterChainExecution, holder.getRequest(), holder.getResponse());
request.removeAttribute(FILTER_APPLIED);
this.logger.debug("Cleared SecurityContextHolder to complete request");
}
}
Redis中出现两个token的原因
SecurityContextConfigurer的configure方法中，如果requireExplicitSave为false，即启用自动保存，则会调用本类的doFilter方法：
try中调用doFilter的时候会调用UsernamePasswordAuthenticationFilter，其父类的方法中会调用saveContext；
而finally中又会调用一次saveContext，导致redis中出现两个token
SecurityContextHolderFilter
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws ServletException, IOException {
if (request.getAttribute(FILTER_APPLIED) != null) {
chain.doFilter(request, response);
return;
}
request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
Supplier<SecurityContext> deferredContext = this.securityContextRepository.loadDeferredContext(request);
try {
this.securityContextHolderStrategy.setDeferredContext(deferredContext);
chain.doFilter(request, response);
}
finally {
this.securityContextHolderStrategy.clearContext();
request.removeAttribute(FILTER_APPLIED);
}
}
doFilter方法中不会去保存SecurityContext
需要我们自己保存，比如在AuthenticationSuccessHandler中去保存

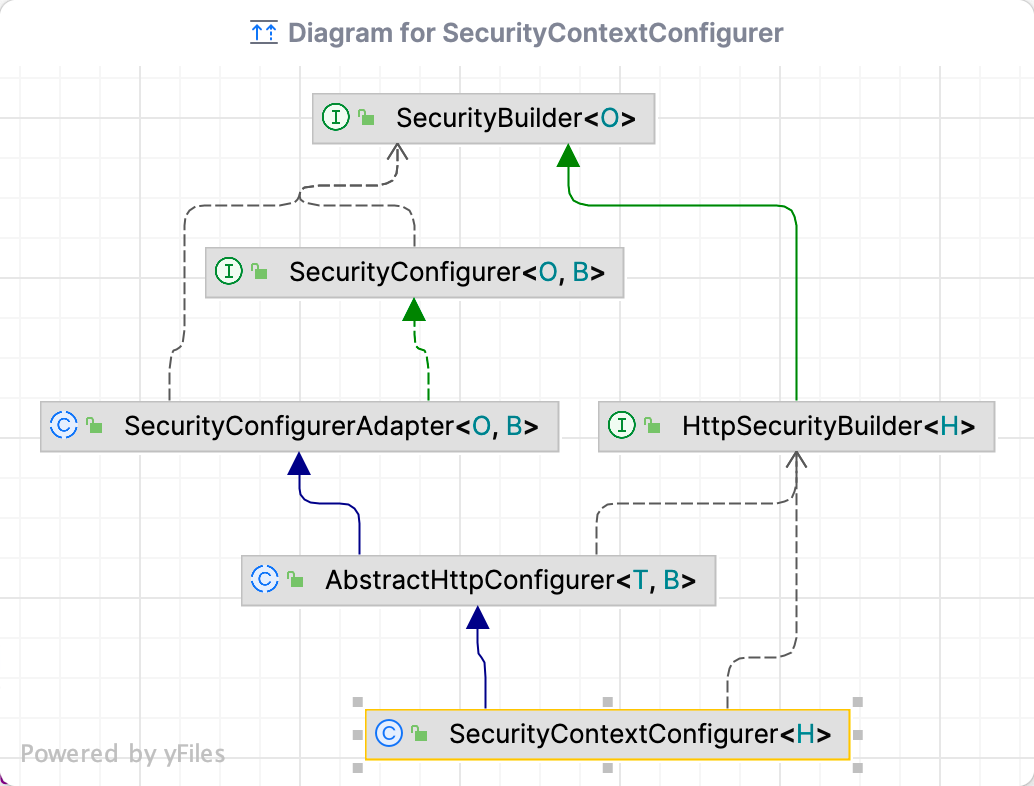

SecurityContextConfigurer
配置过滤器
configure方法
@Override
@SuppressWarnings("unchecked")
public void configure(H http) {
SecurityContextRepository securityContextRepository = getSecurityContextRepository();
if (this.requireExplicitSave) { //判断是否需要手动保存，之前默认false，现在默认true
//返回true，即需要手动保存
//可以自定义ObjectPostProcess
SecurityContextHolderFilter securityContextHolderFilter = postProcess(
new SecurityContextHolderFilter(securityContextRepository));
securityContextHolderFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
http.addFilter(securityContextHolderFilter);
}
else {
SecurityContextPersistenceFilter securityContextFilter = new SecurityContextPersistenceFilter(
securityContextRepository);
securityContextFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());

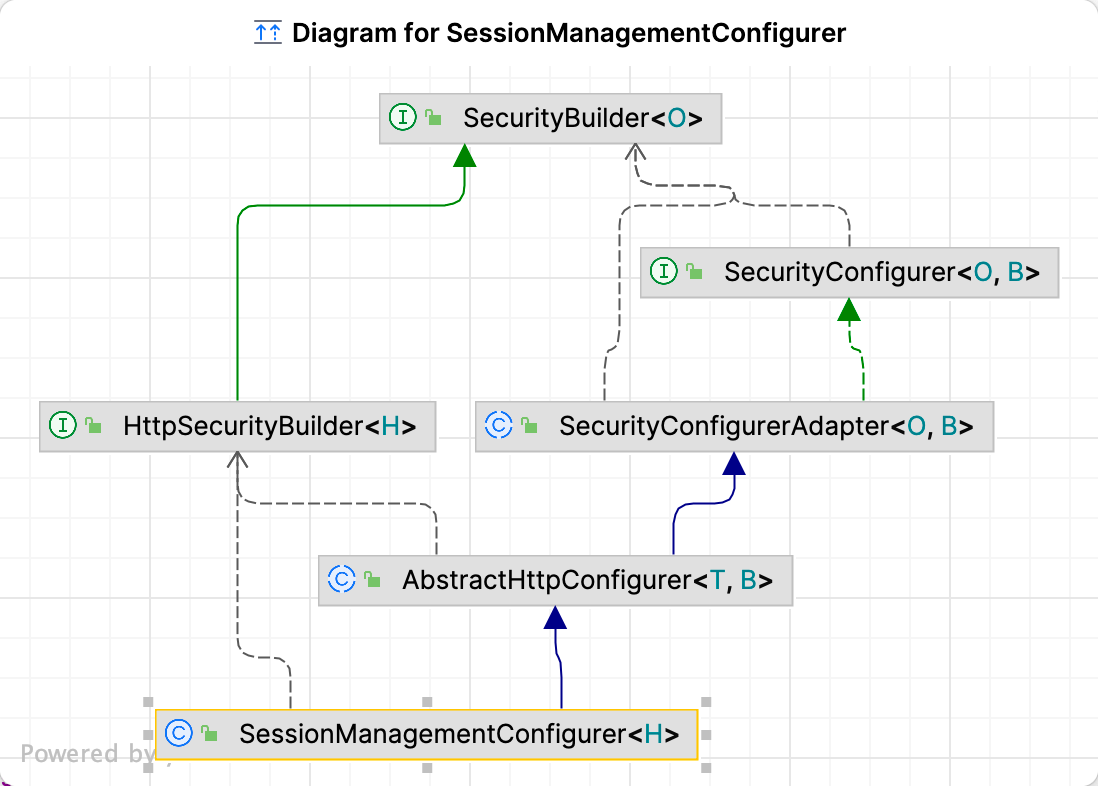

SessionManagementConfigurer<?> sessionManagement = http.getConfigurer(SessionManagementConfigurer.class);
SessionCreationPolicy sessionCreationPolicy = (sessionManagement != null)
? sessionManagement.getSessionCreationPolicy() : null;
if (SessionCreationPolicy.ALWAYS == sessionCreationPolicy) {
securityContextFilter.setForceEagerSessionCreation(true);
http.addFilter(postProcess(new ForceEagerSessionCreationFilter()));
}
securityContextFilter = postProcess(securityContextFilter);
http.addFilter(securityContextFilter);
}
}
build方法 -> doBuild方法 -> performBuild方法 -> 执行真正的逻辑
SecurityFilterChain加入FilterChainProxy的时机

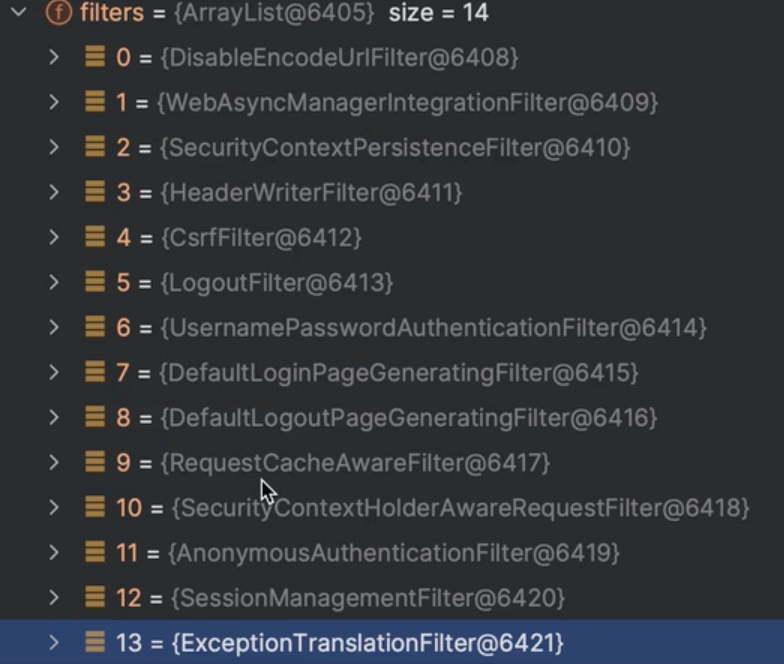

SpringSecurity顶层为FilterChainProxy，维护了一堆SecurityFilterChain
HttpSecurity的performBuild方法构建出了SecurityFilterChain的默认实现DefaultSecurityFilterChain
WebSecurity的performBuild方法构建出了一个Filter，本质上是一个FilterChainProxy
什么时候将一堆SecurityFilterChain加入该FilterChainProxy？
WebSecurity的performBuild方法
@Override
protected Filter performBuild() throws Exception {
Assert.state(!this.securityFilterChainBuilders.isEmpty(),
() -> "At least one SecurityBuilder<? extends SecurityFilterChain> needs to be specified. "
+ "Typically this is done by exposing a SecurityFilterChain bean. "
+ "More advanced users can invoke " + WebSecurity.class.getSimpleName()
+ ".addSecurityFilterChainBuilder directly");
int chainSize = this.ignoredRequests.size() + this.securityFilterChainBuilders.size();
//创建SecurityFilterChain的集合
List<SecurityFilterChain> securityFilterChains = new ArrayList<>(chainSize);
List<RequestMatcherEntry<List<WebInvocationPrivilegeEvaluator>>> requestMatcherPrivilegeEvaluatorsEntries = new ArrayList<>();
for (RequestMatcher ignoredRequest : this.ignoredRequests) {
WebSecurity.this.logger.warn("You are asking Spring Security to ignore " + ignoredRequest
+ ". This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.");
//构建securityFilterChain并加入
SecurityFilterChain securityFilterChain = new DefaultSecurityFilterChain(2️⃣ignoredRequest);
securityFilterChains.add(securityFilterChain);
requestMatcherPrivilegeEvaluatorsEntries
.add(getRequestMatcherPrivilegeEvaluatorsEntry(securityFilterChain));
}
//3️⃣
for (SecurityBuilder<? extends SecurityFilterChain> securityFilterChainBuilder : this.securityFilterChainBuilders) {
SecurityFilterChain securityFilterChain = securityFilterChainBuilder.build();
securityFilterChains.add(securityFilterChain);
requestMatcherPrivilegeEvaluatorsEntries
.add(getRequestMatcherPrivilegeEvaluatorsEntry(securityFilterChain));
}
if (this.privilegeEvaluator == null) {
this.privilegeEvaluator = new RequestMatcherDelegatingWebInvocationPrivilegeEvaluator(
requestMatcherPrivilegeEvaluatorsEntries);
}
//将securityFilterChains加入到filterChainProxy
FilterChainProxy filterChainProxy = new FilterChainProxy(securityFilterChains);
if (this.httpFirewall != null) {
filterChainProxy.setFirewall(this.httpFirewall);
}
if (this.requestRejectedHandler != null) {
filterChainProxy.setRequestRejectedHandler(this.requestRejectedHandler);
}
else if (!this.observationRegistry.isNoop()) {
CompositeRequestRejectedHandler requestRejectedHandler = new CompositeRequestRejectedHandler(
new ObservationMarkingRequestRejectedHandler(this.observationRegistry),
new HttpStatusRequestRejectedHandler());
filterChainProxy.setRequestRejectedHandler(requestRejectedHandler);
}
filterChainProxy.setFilterChainDecorator(getFilterChainDecorator());
filterChainProxy.afterPropertiesSet();
Filter result = filterChainProxy;
if (this.debugEnabled) {
this.logger.warn("\n\n" + "********************************************************************\n"
+ "********** Security debugging is enabled. *************\n"
+ "********** This may include sensitive information. *************\n"
+ "********** Do not use in a production system! *************\n"
+ "********************************************************************\n\n");
result = new DebugFilter(filterChainProxy);
}
this.postBuildAction.run();
return result;
}
2️⃣关于ignoredRequest
WebSecurity自己维护的属性，本质上是RequestMatcher
在我们所写的config类中，
@Bean
public WebSecurityCustomizer webSecurityCustomizer() {
return web -> {
web.ignoring().mvcMatchers();
}
}
配置忽略的请求保存在ignoredRequest中
3️⃣
我们调用addSecurityFilterChainBuilder方法可以在securityFilterChainBuilders属性中加入SecurityFilterChainBuilder，其中的SecurityFilterChainBuilder会在此自动构建产生SecurityFilterChain
SpringSecurity本质是一个过滤器之中套了很多过滤器
FilterChainProxy的doFilter方法
FilterChainProxy的doFilterInternal方法
FilterChainProxy的getFilter方法
DefaultSecurityFilterChain的matches方法
this.requestMatcher匹配anyRequest，一定返回true
构建VirtualFilterChain，逐个filter进行doFilter
VirtualFilterChain中的filter逐个doFilter结束后，执行this.originalChain.doFilter
VirtualFilterChain中的doFilter方法：
@Override
public void doFilter(ServletRequest request, ServletResponse response) throws IOException, ServletException {
if (this.currentPosition == this.size) {
this.originalChain.doFilter(request, response);
return;
}
this.currentPosition++;
Filter nextFilter = this.additionalFilters.get(this.currentPosition - 1);
if (logger.isTraceEnabled()) {
String name = nextFilter.getClass().getSimpleName();
logger.trace(LogMessage.format("Invoking %s (%d/%d)", name, this.currentPosition, this.size));
}
nextFilter.doFilter(request, response, this);
}
RememberMe相关类
- RememberMeAuthenticationFilter
- RememberMeAuthenticationProvider
- RememberMeAuthenticationToken
- RememberMeConfigurer
- RememberMeServices
RememberMe也算一种认证方式，需要cookie认证
RememberMeAuthenticationFilter
属性
private SecurityContextHolderStrategy securityContextHolderStrategy = SecurityContextHolder
.getContextHolderStrategy();
private ApplicationEventPublisher eventPublisher;
private AuthenticationSuccessHandler successHandler;
private AuthenticationManager authenticationManager;
private RememberMeServices rememberMeServices;
private SecurityContextRepository securityContextRepository = new HttpSessionSecurityContextRepository();
doFilter方法
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
if (this.securityContextHolderStrategy.getContext().getAuthentication() != null) { //如果不等于null，说明已经被认证过，就不需要认证了，退出方法
this.logger.debug(LogMessage
.of(() -> "SecurityContextHolder not populated with remember-me token, as it already contained: '"
+ this.securityContextHolderStrategy.getContext().getAuthentication() + "'"));
chain.doFilter(request, response);
return;
}
//1️⃣
Authentication rememberMeAuth = this.rememberMeServices.autoLogin(request, response);
if (rememberMeAuth != null) {
// Attempt authentication via AuthenticationManager
try {
//调用authenticate方法，得到一个认证后的Authentication重新赋值给rememberMeAuth
rememberMeAuth = this.authenticationManager.authenticate(rememberMeAuth);
// Store to SecurityContextHolder
//创建一个新的context并放入rememberMeAuth，再setContext
SecurityContext context = this.securityContextHolderStrategy.createEmptyContext();
context.setAuthentication(rememberMeAuth);
this.securityContextHolderStrategy.setContext(context);
onSuccessfulAuthentication(request, response, rememberMeAuth);
this.logger.debug(LogMessage.of(() -> "SecurityContextHolder populated with remember-me token: '"
+ this.securityContextHolderStrategy.getContext().getAuthentication() + "'"));
//进行持久化
this.securityContextRepository.saveContext(context, request, response);
if (this.eventPublisher != null) {
this.eventPublisher.publishEvent(new InteractiveAuthenticationSuccessEvent(
this.securityContextHolderStrategy.getContext().getAuthentication(), this.getClass()));
}
if (this.successHandler != null) {
this.successHandler.onAuthenticationSuccess(request, response, rememberMeAuth);
return;
}
}
catch (AuthenticationException ex) {
this.logger.debug(LogMessage
.format("SecurityContextHolder not populated with remember-me token, as AuthenticationManager "
+ "rejected Authentication returned by RememberMeServices: '%s'; "
+ "invalidating remember-me token", rememberMeAuth),
ex);
this.rememberMeServices.loginFail(request, response);
//空实现，意味着登录失败不会抛出异常
onUnsuccessfulAuthentication(request, response, ex);
}
}
chain.doFilter(request, response);
}
1️⃣
this.rememberMeServices：
RememberMeServices 类属性
autoLogin方法：
autoLogin方法的重要实现类AbstractRememberMeServices
RememberMeServices
作用
通过request拿出信息，构造出一个Authentication，和UsernamePasswordAuthenticationToken类似
根据我们的需要构造一个用于rememberMe认证的Authentication
public interface RememberMeServices {
//根据请求信息构造Authentication
Authentication autoLogin(HttpServletRequest request, HttpServletResponse response);
void loginFail(HttpServletRequest request, HttpServletResponse response);
void loginSuccess(HttpServletRequest request, HttpServletResponse response,
Authentication successfulAuthentication);
}
The returned Authentication must be acceptable to org.springframework.security.authentication.AuthenticationManager or org.springframework.security.authentication.AuthenticationProvider defined by the web application. It is recommended org.springframework.security.authentication.RememberMeAuthenticationToken be used in most cases, as it has a corresponding authentication provider
建议返回一个RememberMeAuthenticationToken

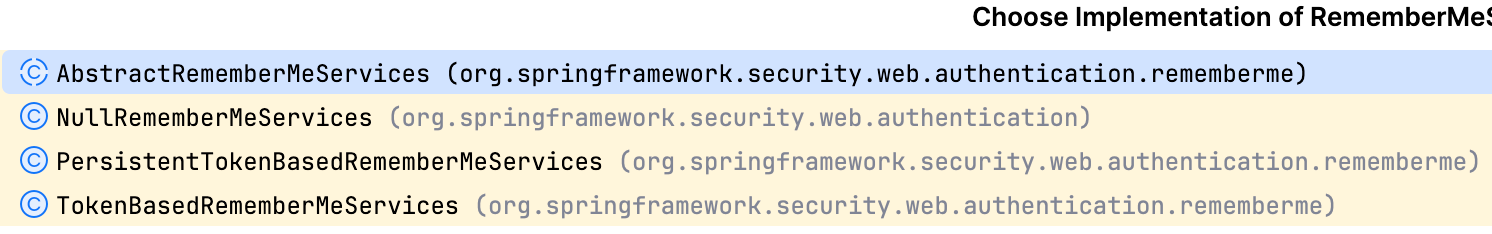

实现类
RememberMeAuthenticationProvider
@Override
public Authentication authenticate(Authentication authentication) throws AuthenticationException {
if (!supports(authentication.getClass())) {
return null;
}
if (this.key.hashCode() != ((RememberMeAuthenticationToken) authentication).getKeyHash()) {
throw new BadCredentialsException(this.messages.getMessage("RememberMeAuthenticationProvider.incorrectKey",
"The presented RememberMeAuthenticationToken does not contain the expected key"));
}
return authentication;
}
该authenticate方法未进行重要逻辑
RememberMeAuthenticationToken
public class RememberMeAuthenticationToken extends AbstractAuthenticationToken {
private static final long serialVersionUID = SpringSecurityCoreVersion.SERIAL_VERSION_UID;
private final Object principal;
private final int keyHash;
public RememberMeAuthenticationToken(String key, Object principal,
Collection<? extends GrantedAuthority> authorities) {
super(authorities);
if ((key == null) || ("".equals(key)) || (principal == null) || "".equals(principal)) {
throw new IllegalArgumentException("Cannot pass null or empty values to constructor");
}
this.keyHash = key.hashCode();
this.principal = principal;
setAuthenticated(true);
}
private RememberMeAuthenticationToken(Integer keyHash, Object principal,
Collection<? extends GrantedAuthority> authorities) {
super(authorities);
this.keyHash = keyHash;
this.principal = principal;
setAuthenticated(true);
}
@Override
public Object getCredentials() {
return "";
}
public int getKeyHash() {
return this.keyHash;
}
@Override
public Object getPrincipal() {
return this.principal;
}
@Override
public boolean equals(Object obj) {
if (!super.equals(obj)) {
return false;
}
if (obj instanceof RememberMeAuthenticationToken) {
RememberMeAuthenticationToken other = (RememberMeAuthenticationToken) obj;
if (this.getKeyHash() != other.getKeyHash()) {
return false;
}
return true;
}
return false;
}
@Override
public int hashCode() {
int result = super.hashCode();
result = 31 * result + this.keyHash;
return result;
}
}
和UsernamePasswordAuthenticationToken一样是AbstractAuthenticationToken的实现类
AbstractRememberMeServices
autoLogin方法
@Override
public Authentication autoLogin(HttpServletRequest request, HttpServletResponse response) {
//拿到cookie
String rememberMeCookie = 1️⃣extractRememberMeCookie(request);
if (rememberMeCookie == null) {
return null;
}
this.logger.debug("Remember-me cookie detected");
if (rememberMeCookie.length() == 0) {
this.logger.debug("Cookie was empty");
2️⃣cancelCookie(request, response);
return null;
}
try {
//解码
String[] cookieTokens = 3️⃣decodeCookie(rememberMeCookie);
UserDetails user = 4️⃣processAutoLoginCookie(cookieTokens, request, response);
this.userDetailsChecker.check(user);
this.logger.debug("Remember-me cookie accepted");
return createSuccessfulAuthentication(request, user);
}
catch (CookieTheftException ex) {
cancelCookie(request, response);
throw ex;
}
catch (UsernameNotFoundException ex) {
this.logger.debug("Remember-me login was valid but corresponding user not found.", ex);
}
catch (InvalidCookieException ex) {
this.logger.debug("Invalid remember-me cookie: " + ex.getMessage());
}
catch (AccountStatusException ex) {
this.logger.debug("Invalid UserDetails: " + ex.getMessage());
}
catch (RememberMeAuthenticationException ex) {
this.logger.debug(ex.getMessage());
}
cancelCookie(request, response);
return null;
}
1️⃣extractRememberMeCookie
protected String extractRememberMeCookie(HttpServletRequest request) {
Cookie[] cookies = request.getCookies();
if ((cookies == null) || (cookies.length == 0)) {
return null;
}
for (Cookie cookie : cookies) {
if (this.cookieName.equals(cookie.getName())) {
return cookie.getValue();
}
}
return null;
}
其中this.cookieName为属性：
private String cookieName = SPRING_SECURITY_REMEMBER_ME_COOKIE_KEY;
2️⃣cancelCookie
protected void cancelCookie(HttpServletRequest request, HttpServletResponse response) {
this.logger.debug("Cancelling cookie");
Cookie cookie = new Cookie(this.cookieName, null);
cookie.setMaxAge(0);
cookie.setPath(getCookiePath(request));
if (this.cookieDomain != null) {
cookie.setDomain(this.cookieDomain);
}
cookie.setSecure((this.useSecureCookie != null) ? this.useSecureCookie : request.isSecure());
response.addCookie(cookie);
}
A positive value indicates that the cookie will expire after that many seconds have passed. Note that the value is the maximum age when the cookie will expire, not the cookie's current age.
A negative value means that the cookie is not stored persistently and will be deleted when the Web browser exits. A zero value causes the cookie to be deleted.
cookie.setMaxAge(0)：设置为0代表删除cookie
3️⃣decodeCookie
protected String[] decodeCookie(String cookieValue) throws InvalidCookieException {
//修复base64编码被抹掉的等号
for (int j = 0; j < cookieValue.length() % 4; j++) {
cookieValue = cookieValue + "=";
}
String cookieAsPlainText;
try {
cookieAsPlainText = new String(Base64.getDecoder().decode(cookieValue.getBytes()));
}
catch (IllegalArgumentException ex) {
throw new InvalidCookieException("Cookie token was not Base64 encoded; value was '" + cookieValue + "'");
}
String[] tokens = StringUtils.delimitedListToStringArray(cookieAsPlainText, DELIMITER); //通过冒号分割
for (int i = 0; i < tokens.length; i++) {
try {
tokens[i] = URLDecoder.decode(tokens[i], StandardCharsets.UTF_8.toString());
}
catch (UnsupportedEncodingException ex) {
this.logger.error(ex.getMessage(), ex);
}
}
return tokens;
}
4️⃣processAutoLoginCookie
在本类中该方法为抽象方法

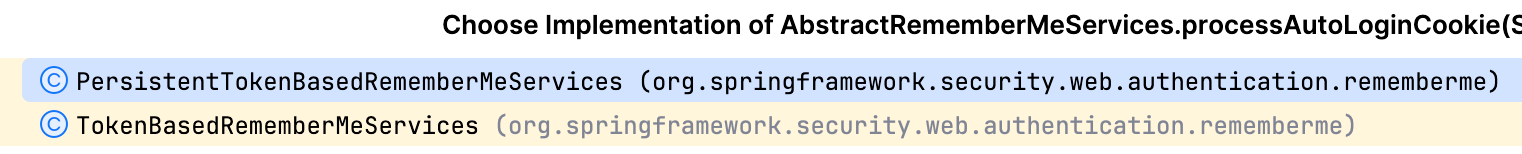

实现类：
第一个基于数据库，第二个基于内存
在TokenBasedRememberMeServices中的实现：
@Override
protected UserDetails processAutoLoginCookie(String[] cookieTokens, HttpServletRequest request,
HttpServletResponse response) {
//判断cookie长度
if (!isValidCookieTokensLength(cookieTokens)) {
throw new InvalidCookieException(
"Cookie token did not contain 3 or 4 tokens, but contained '" + Arrays.asList(cookieTokens) + "'");
}
long tokenExpiryTime = getTokenExpiryTime(cookieTokens);
if (isTokenExpired(tokenExpiryTime)) { //判断cookie是否过期
throw new InvalidCookieException("Cookie token[1] has expired (expired on '" + new Date(tokenExpiryTime)
+ "'; current time is '" + new Date() + "')");
}
// Check the user exists. Defer lookup until after expiry time checked, to
// possibly avoid expensive database call. UserDetails userDetails = getUserDetailsService().loadUserByUsername(cookieTokens[0]);
Assert.notNull(userDetails, () -> "UserDetailsService " + getUserDetailsService()
+ " returned null for username " + cookieTokens[0] + ". " + "This is an interface contract violation");
// Check signature of token matches remaining details. Must do this after user
// lookup, as we need the DAO-derived password. If efficiency was a major issue, // just add in a UserCache implementation, but recall that this method is usually // only called once per HttpSession - if the token is valid, it will cause // SecurityContextHolder population, whilst if invalid, will cause the cookie to // be cancelled. String actualTokenSignature = cookieTokens[2];
RememberMeTokenAlgorithm actualAlgorithm = this.matchingAlgorithm;
// If the cookie value contains the algorithm, we use that algorithm to check the
// signature if (cookieTokens.length == 4) {
actualTokenSignature = cookieTokens[3];
actualAlgorithm = RememberMeTokenAlgorithm.valueOf(cookieTokens[2]);
}
//生成一个signature，并于cookie中自带的signature比对
String expectedTokenSignature = makeTokenSignature(tokenExpiryTime, userDetails.getUsername(), userDetails.getPassword(), actualAlgorithm);
if (!equals(expectedTokenSignature, actualTokenSignature)) {
throw new InvalidCookieException("Cookie contained signature '" + actualTokenSignature + "' but expected '"
+ expectedTokenSignature + "'");
}
return userDetails;
}
RememberMeConfigurer
重要方法
@Override
public void init(H http) throws Exception {
validateInput();
String key = getKey();
RememberMeServices rememberMeServices = getRememberMeServices(http, key);
http.setSharedObject(RememberMeServices.class, rememberMeServices);
LogoutConfigurer<H> logoutConfigurer = http.getConfigurer(LogoutConfigurer.class);
if (logoutConfigurer != null && this.logoutHandler != null) {
logoutConfigurer.addLogoutHandler(this.logoutHandler);
}
RememberMeAuthenticationProvider authenticationProvider = new RememberMeAuthenticationProvider(key);
authenticationProvider = postProcess(authenticationProvider);
http.authenticationProvider(authenticationProvider);
initDefaultLoginFilter(http);
}
@Override
public void configure(H http) { //创建过滤器，加入到过滤器链
RememberMeAuthenticationFilter rememberMeFilter = new RememberMeAuthenticationFilter(
http.getSharedObject(AuthenticationManager.class), this.rememberMeServices);
if (this.authenticationSuccessHandler != null) {
rememberMeFilter.setAuthenticationSuccessHandler(this.authenticationSuccessHandler);
}
SecurityContextConfigurer<?> securityContextConfigurer = http.getConfigurer(SecurityContextConfigurer.class);
if (securityContextConfigurer != null && securityContextConfigurer.isRequireExplicitSave()) {
SecurityContextRepository securityContextRepository = securityContextConfigurer
.getSecurityContextRepository();
rememberMeFilter.setSecurityContextRepository(securityContextRepository);
}
rememberMeFilter.setSecurityContextHolderStrategy(getSecurityContextHolderStrategy());
rememberMeFilter = postProcess(rememberMeFilter);
http.addFilter(rememberMeFilter);
}
剩下的其他方法大多数是给使用者提供自定义属性的方法
即config类中所写的http.xxx()
Session相关类
- SessionManagementConfigurer
- SessionManagementFilter
- SessionAuthenticationStrategy
- SessionInformation
- SessionRegistry
- SessionInformationExpiredStrategy
SessionManagementFilter
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
if (request.getAttribute(FILTER_APPLIED) != null) {
chain.doFilter(request, response);
return;
}
request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
if (!this.securityContextRepository.containsContext(request)) {
Authentication authentication = this.securityContextHolderStrategy.getContext().getAuthentication();
if (authentication != null && !this.trustResolver.isAnonymous(authentication)) {
try {
1️⃣this.sessionAuthenticationStrategy.onAuthentication(authentication, request, response);
}
catch (SessionAuthenticationException ex) { //抛出异常，失败处理
// The session strategy can reject the authentication
this.logger.debug("SessionAuthenticationStrategy rejected the authentication object", ex);
this.securityContextHolderStrategy.clearContext();
this.failureHandler.onAuthenticationFailure(request, response, ex);
return;
}
this.securityContextRepository.saveContext
(this.securityContextHolderStrategy.getContext(),request, response); //保存
}
else {
if (request.getRequestedSessionId() != null && !request.isRequestedSessionIdValid()) {
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Request requested invalid session id %s",
request.getRequestedSessionId()));
}
if (this.invalidSessionStrategy != null) {
this.invalidSessionStrategy.onInvalidSessionDetected(request, response);
return;
}
}
}
}
chain.doFilter(request, response);
}
重要方法：1️⃣this.sessionAuthenticationStrategy .onAuthentication
SessionAuthenticationStrategy
一个策略类的接口
public interface SessionAuthenticationStrategy {
void onAuthentication(Authentication authentication, HttpServletRequest request, HttpServletResponse response)
throws SessionAuthenticationException;
}

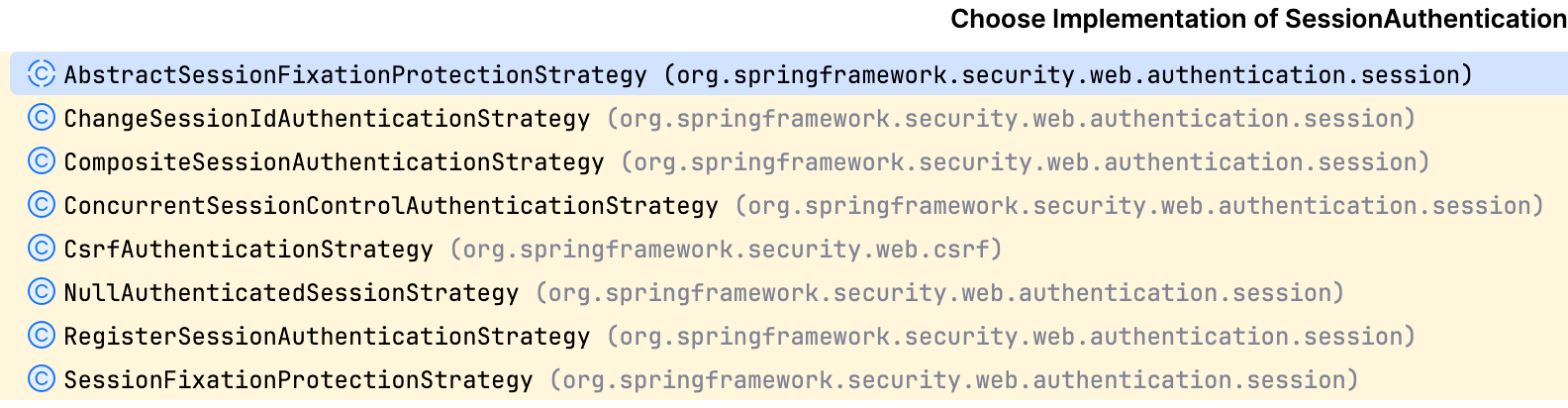

实现类有：
实现类RegisterSessionAuthenticationStrategy
Strategy used to register a user with the SessionRegistry after successful Authentication.
public class RegisterSessionAuthenticationStrategy implements SessionAuthenticationStrategy {
private final SessionRegistry sessionRegistry;
public RegisterSessionAuthenticationStrategy(SessionRegistry sessionRegistry) {
Assert.notNull(sessionRegistry, "The sessionRegistry cannot be null");
this.sessionRegistry = sessionRegistry;
}
@Override
public void onAuthentication(Authentication authentication, HttpServletRequest request,
HttpServletResponse response) {
//注册一个新的session
this.sessionRegistry.registerNewSession(request.getSession().getId(), authentication.getPrincipal());
}
}
实现类ConcurrentSessionControlAuthenticationStrategy
onAuthentication方法
@Override
public void onAuthentication(Authentication authentication, HttpServletRequest request,
HttpServletResponse response) {
int allowedSessions = getMaximumSessionsForThisUser(authentication);
if (allowedSessions == -1) {
// We permit unlimited logins
return;
}
//根据principle信息拿到所有的session，bool属性为是否包括过期session
List<SessionInformation> sessions = this.sessionRegistry.getAllSessions(authentication.getPrincipal(), false);
int sessionCount = sessions.size();
if (sessionCount < allowedSessions) {
// They haven't got too many login sessions running at present
return;
}
if (sessionCount == allowedSessions) {
HttpSession session = request.getSession(false); //false表示如果session不存在不会去创建
if (session != null) {
// Only permit it though if this request is associated with one of the
// already registered sessions
for (SessionInformation si : sessions) {
if (si.getSessionId().equals(session.getId())) {
return;
}
}
//如果sessions中没有改session，则说明改session可能是新的session，但是由于sessionCount已经到达允许的最大值了，再加入新的会超出最大值。于是调用allowableSessionsExceeded方法
}
// If the session is null, a new one will be created by the parent class,
// exceeding the allowed number
}
allowableSessionsExceeded(sessions, allowedSessions, this.sessionRegistry);
}
allowableSessionsExceeded方法
protected void allowableSessionsExceeded(List<SessionInformation> sessions, int allowableSessions,
SessionRegistry registry) throws SessionAuthenticationException {
if (this.exceptionIfMaximumExceeded || (sessions == null)) {
throw new SessionAuthenticationException(
this.messages.getMessage("ConcurrentSessionControlAuthenticationStrategy.exceededAllowed",
new Object[] { allowableSessions }, "Maximum sessions of {0} for this principal exceeded"));
}
// Determine least recently used sessions, and mark them for invalidation
sessions.sortgetLastRequest);
int maximumSessionsExceededBy = sessions.size() - allowableSessions + 1;
List<SessionInformation> sessionsToBeExpired = sessions.subList(0, maximumSessionsExceededBy);
for (SessionInformation session : sessionsToBeExpired) {
session.expireNow();
}
}
如果不抛异常，即不进if语句，则会把session按照时间排序，将最老的的session标记为过期，然后加入新的session
实现类CompositeSessionAuthenticationStrategy
public class CompositeSessionAuthenticationStrategy implements SessionAuthenticationStrategy {
private final Log logger = LogFactory.getLog(getClass());
private final List<SessionAuthenticationStrategy> delegateStrategies;
public CompositeSessionAuthenticationStrategy(List<SessionAuthenticationStrategy> delegateStrategies) {
Assert.notEmpty(delegateStrategies, "delegateStrategies cannot be null or empty");
for (SessionAuthenticationStrategy strategy : delegateStrategies) {
Assert.notNull(strategy, () -> "delegateStrategies cannot contain null entires. Got " + delegateStrategies);
}
this.delegateStrategies = delegateStrategies;
}
@Override
public void onAuthentication(Authentication authentication, HttpServletRequest request,
HttpServletResponse response) throws SessionAuthenticationException {
int currentPosition = 0;
int size = this.delegateStrategies.size();
for (SessionAuthenticationStrategy delegate : this.delegateStrategies) {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.format("Preparing session with %s (%d/%d)",
delegate.getClass().getSimpleName(), ++currentPosition, size));
}
delegate.onAuthentication(authentication, request, response);
}
}
@Override
public String toString() {
return getClass().getName() + " [delegateStrategies = " + this.delegateStrategies + "]";
}
}
有属性List<\SessionAuthenticationStrategy> delegateStrategies
维护了一堆的SessionAuthenticationStrategy
再调用该类的onAuthentication方法时会逐个调用delegateStrategies中元素的onAuthentication方法
从而实现多策略的组合模式
实现类AbstractSessionFixationProtectionStrategy
public void onAuthentication(Authentication authentication, HttpServletRequest request,
HttpServletResponse response) {
boolean hadSessionAlready = request.getSession(false) != null;
if (!hadSessionAlready && !this.alwaysCreateSession) {
// Session fixation isn't a problem if there's no session
return;
}
// Create new session if necessary
HttpSession session = request.getSession();
if (hadSessionAlready && request.isRequestedSessionIdValid()) {
String originalSessionId;
String newSessionId;
Object mutex = WebUtils.getSessionMutex(session);
synchronized (mutex) {
// We need to migrate to a new session
originalSessionId = session.getId();
//得到一个新的sessionId
session = applySessionFixation(request);
newSessionId = session.getId();
}
if (originalSessionId.equals(newSessionId)) {
this.logger.warn("Your servlet container did not change the session ID when a new session "
+ "was created. You will not be adequately protected against session-fixation attacks");
}
else {
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Changed session id from %s", originalSessionId));
}
}
onSessionChange(originalSessionId, session, authentication);
}
}
通过定期改变sessionId来防止固定会话攻击
applySessionFixation方法
abstract HttpSession applySessionFixation(HttpServletRequest request);

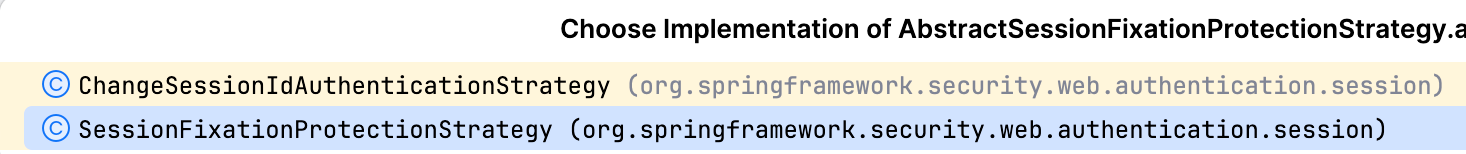

模版方法，有两个实现
ChangeSessionIdAuthenticationStrategy中的实现
public final class ChangeSessionIdAuthenticationStrategy extends AbstractSessionFixationProtectionStrategy {
@Override
HttpSession applySessionFixation(HttpServletRequest request) {
request.changeSessionId();
return request.getSession();
}
}
直接改变sessionId，不用把session销毁也不会创建新的session对象，即session对象不会改变
SessionFixationProtectionStrategy中的实现
@Override
final HttpSession applySessionFixation(HttpServletRequest request) {
HttpSession session = request.getSession();
String originalSessionId = session.getId();
this.logger.debug(LogMessage.of(() -> "Invalidating session with Id '" + originalSessionId + "' "
+ (this.migrateSessionAttributes ? "and" : "without") + " migrating attributes."));
Map<String, Object> attributesToMigrate = extractAttributes(session);
int maxInactiveIntervalToMigrate = session.getMaxInactiveInterval();
session.invalidate();
//属性为true，即创建一个新的session
session = request.getSession(true); // we now have a new session
this.logger.debug(LogMessage.format("Started new session: %s", session.getId()));
transferAttributes(attributesToMigrate, session);
if (this.migrateSessionAttributes) {
session.setMaxInactiveInterval(maxInactiveIntervalToMigrate);
}
return session; //返回新的session
}
创建了新的session从而改变sessionId
SessionRegistry
存储SessionInformation
public interface SessionRegistry {
List<Object> getAllPrincipals();
List<SessionInformation> getAllSessions(Object principal, boolean includeExpiredSessions);
SessionInformation getSessionInformation(String sessionId);
void refreshLastRequest(String sessionId);
void registerNewSession(String sessionId, Object principal);
void removeSessionInformation(String sessionId);
}
仅有一个实现类SessionRegistryImpl
SessionInformation
维护了一些基本信息
public class SessionInformation implements Serializable {
private static final long serialVersionUID = SpringSecurityCoreVersion.SERIAL_VERSION_UID;
private Date lastRequest;
private final Object principal;
private final String sessionId;
private boolean expired = false;
public SessionInformation(Object principal, String sessionId, Date lastRequest) {
Assert.notNull(principal, "Principal required");
Assert.hasText(sessionId, "SessionId required");
Assert.notNull(lastRequest, "LastRequest required");
this.principal = principal;
this.sessionId = sessionId;
this.lastRequest = lastRequest;
}
public void expireNow() {
this.expired = true;
}
public Date getLastRequest() {
return this.lastRequest;
}
public Object getPrincipal() {
return this.principal;
}
public String getSessionId() {
return this.sessionId;
}
public boolean isExpired() {
return this.expired;
}
//每次刷新
public void refreshLastRequest() {
this.lastRequest = new Date();
}
}
SessionInformationExpiredStrategy
/**
* Determines the behaviour of the ConcurrentSessionFilter when an expired session is detected in the ConcurrentSessionFilter. */
public interface SessionInformationExpiredStrategy {
void onExpiredSessionDetected(SessionInformationExpiredEvent event) throws IOException, ServletException;
}

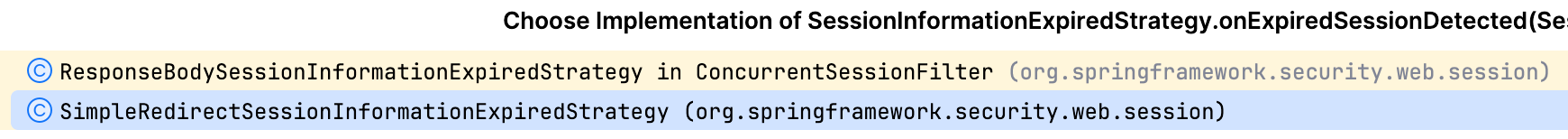

决定ConcurrentSessionFilter的过期策略
onExpiredSessionDetected方法
ResponseBodySessionInformationExpiredStrategy中的实现
private static final class ResponseBodySessionInformationExpiredStrategy
implements SessionInformationExpiredStrategy {
@Override
public void onExpiredSessionDetected(SessionInformationExpiredEvent event) throws IOException {
HttpServletResponse response = event.getResponse();
response.getWriter()
.print("This session has been expired (possibly due to multiple concurrent "
+ "logins being attempted as the same user).");
response.flushBuffer();
}
}
SimpleRedirectSessionInformationExpiredStrategy中的实现
public final class SimpleRedirectSessionInformationExpiredStrategy implements SessionInformationExpiredStrategy {
private final Log logger = LogFactory.getLog(getClass());
private final String destinationUrl;
private final RedirectStrategy redirectStrategy;
public SimpleRedirectSessionInformationExpiredStrategy(String invalidSessionUrl) {
this(invalidSessionUrl, new DefaultRedirectStrategy());
}
public SimpleRedirectSessionInformationExpiredStrategy(String invalidSessionUrl,
RedirectStrategy redirectStrategy) {
Assert.isTrue(UrlUtils.isValidRedirectUrl(invalidSessionUrl), "url must start with '/' or with 'http(s)'");
this.destinationUrl = invalidSessionUrl;
this.redirectStrategy = redirectStrategy;
}
@Override
public void onExpiredSessionDetected(SessionInformationExpiredEvent event) throws IOException {
this.logger.debug("Redirecting to '" + this.destinationUrl + "'");
this.redirectStrategy.sendRedirect(event.getRequest(), event.getResponse(), this.destinationUrl);
}
}
this.redirectStrategy.sendRedirect
重定向策略接口RedirectStrategy
public interface RedirectStrategy {
/**
* Performs a redirect to the supplied URL * @param request the current request
* @param response the response to redirect
* @param url the target URL to redirect to, for example "/login"
*/
void sendRedirect(HttpServletRequest request, HttpServletResponse response, String url) throws IOException;
}
默认实现类为DefaultRedirectStrategy
ConcurrentSessionFilter
doFilter方法
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
HttpSession session = request.getSession(false);
if (session != null) {
//通过sessionRegistry.getSessionInformation得到session信息
SessionInformation info = this.sessionRegistry.getSessionInformation(session.getId());
if (info != null) {
if (info.isExpired()) {
// Expired - abort processing
this.logger.debug(LogMessage
.of(() -> "Requested session ID " + request.getRequestedSessionId() + " has expired."));
doLogout(request, response);
//2️⃣
this.sessionInformationExpiredStrategy
.onExpiredSessionDetected(new SessionInformationExpiredEvent(info, request, response));
return;
}
// Non-expired - update last request date/time
this.sessionRegistry.refreshLastRequest(info.getSessionId());
}
}
chain.doFilter(request, response);
}
2️⃣this.sessionInformationExpiredStrategy.onExpiredSessionDetected
如果过期，就调用策略类的处理过期的方法onExpiredSessionDetected，该方法由其实现类具体实现
SessionManagementConfigurer
重要方法：init和configure
@Override
public void init(H http) { //set一些属性
SecurityContextRepository securityContextRepository = http.getSharedObject(SecurityContextRepository.class);
boolean stateless = isStateless();
if (securityContextRepository == null) {
if (stateless) {
http.setSharedObject(SecurityContextRepository.class, new RequestAttributeSecurityContextRepository());
this.sessionManagementSecurityContextRepository = new NullSecurityContextRepository();
}
else {
HttpSessionSecurityContextRepository httpSecurityRepository = new HttpSessionSecurityContextRepository();
httpSecurityRepository.setDisableUrlRewriting(!this.enableSessionUrlRewriting);
httpSecurityRepository.setAllowSessionCreation(isAllowSessionCreation());
AuthenticationTrustResolver trustResolver = http.getSharedObject(AuthenticationTrustResolver.class);
if (trustResolver != null) {
httpSecurityRepository.setTrustResolver(trustResolver);
}
this.sessionManagementSecurityContextRepository = httpSecurityRepository;
DelegatingSecurityContextRepository defaultRepository = new DelegatingSecurityContextRepository(
httpSecurityRepository, new RequestAttributeSecurityContextRepository());
http.setSharedObject(SecurityContextRepository.class, defaultRepository);
}
}
else {
this.sessionManagementSecurityContextRepository = securityContextRepository;
}
RequestCache requestCache = http.getSharedObject(RequestCache.class);
if (requestCache == null) {
if (stateless) {
http.setSharedObject(RequestCache.class, new NullRequestCache());
}
}
http.setSharedObject(SessionAuthenticationStrategy.class, getSessionAuthenticationStrategy(http));
http.setSharedObject(InvalidSessionStrategy.class, getInvalidSessionStrategy());
}
@Override
public void configure(H http) { //添加sessoin相关的filter
SessionManagementFilter sessionManagementFilter = createSessionManagementFilter(http);
if (sessionManagementFilter != null) {
http.addFilter(sessionManagementFilter);
}
if (isConcurrentSessionControlEnabled()) {
ConcurrentSessionFilter concurrentSessionFilter = createConcurrencyFilter(http);
concurrentSessionFilter = postProcess(concurrentSessionFilter);
http.addFilter(concurrentSessionFilter);
}
if (!this.enableSessionUrlRewriting) {
http.addFilter(new DisableEncodeUrlFilter());
}
if (this.sessionPolicy == SessionCreationPolicy.ALWAYS) {
http.addFilter(new ForceEagerSessionCreationFilter());
}
}
一些Filter
DefaultSecurityFilterChain中的filter包含：
DisableEncodeUrlFilter
public class DisableEncodeUrlFilter extends OncePerRequestFilter {
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
filterChain.doFilter(request, new 1️⃣DisableEncodeUrlResponseWrapper(response));
}
}

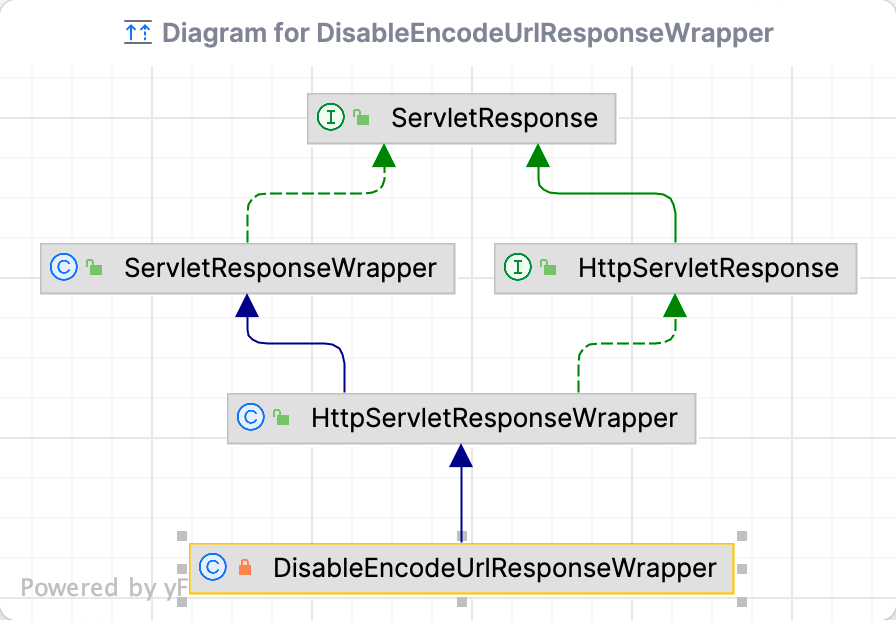

1️⃣DisableEncodeUrlResponseWrapper
new DisableEncodeUrlResponseWrapper(response)：
该参数是一个response的包装
//1️⃣
private static final class DisableEncodeUrlResponseWrapper extends HttpServletResponseWrapper {
private DisableEncodeUrlResponseWrapper(HttpServletResponse response) {
super(response);
}
@Override
public String encodeRedirectURL(String url) {
return url;
}
//2️⃣把sessionId编码到url中
@Override
public String encodeURL(String url) {
return url;
}
}
装饰器模式：类中先维护一份被装饰的对象，然后实现被装饰对象的方法，最后默认调用被装饰对象的同名方法
比如该类的父类HttpServletResponseWrapper，还有HttpServletRequestWrapper
2️⃣encodeURL
在HttpServletResponse中的声明：
/**
Encodes the specified URL by including the session ID in it, or, if encoding is not needed, returns the URL unchanged. The implementation of this method includes the logic to determine whether the session ID needs to be encoded in the URL. For example, if the browser supports cookies, or session tracking is turned off, URL encoding is unnecessary.
For robust session tracking, all URLs emitted by a servlet should be run through this method. Otherwise, URL rewriting cannot be used with browsers which do not support cookies.
Params:
url – the url to be encoded.
Returns:
the encoded URL if encoding is needed; the unchanged URL otherwise. */
String encodeURL(String url);
如果有sessionId，就将sessionId包含在url中并返回；如果没有sessionId，就直接返回url
而本类直接重写了encodeURL方法，直接返回url
所以DisableEncodeUrlFilter的作用就是让这些包含sessionId到url的方法失效
WebAsyncManagerIntegrationFilter
管理异步执行，在异步执行之前把SecurityContext放进去
public final class WebAsyncManagerIntegrationFilter extends OncePerRequestFilter {
private static final Object CALLABLE_INTERCEPTOR_KEY = new Object();
private SecurityContextHolderStrategy securityContextHolderStrategy = SecurityContextHolder
.getContextHolderStrategy();
@Override
protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
SecurityContextCallableProcessingInterceptor securityProcessingInterceptor = (SecurityContextCallableProcessingInterceptor) asyncManager
.getCallableInterceptor(CALLABLE_INTERCEPTOR_KEY);
if (securityProcessingInterceptor == null) {
SecurityContextCallableProcessingInterceptor interceptor = new SecurityContextCallableProcessingInterceptor(); //1️⃣
interceptor.setSecurityContextHolderStrategy(this.securityContextHolderStrategy);
asyncManager.registerCallableInterceptor(CALLABLE_INTERCEPTOR_KEY, interceptor);
}
filterChain.doFilter(request, response);
}
public void setSecurityContextHolderStrategy(SecurityContextHolderStrategy securityContextHolderStrategy) {
Assert.notNull(securityContextHolderStrategy, "securityContextHolderStrategy cannot be null");
this.securityContextHolderStrategy = securityContextHolderStrategy;
}
}
1️⃣SecurityContextCallableProcessingInterceptor
public final class SecurityContextCallableProcessingInterceptor implements CallableProcessingInterceptor {
private volatile SecurityContext securityContext;
private SecurityContextHolderStrategy securityContextHolderStrategy = SecurityContextHolder
.getContextHolderStrategy();
public SecurityContextCallableProcessingInterceptor() {
}
public SecurityContextCallableProcessingInterceptor(SecurityContext securityContext) {
Assert.notNull(securityContext, "securityContext cannot be null");
setSecurityContext(securityContext);
}
@Override
public <T> void beforeConcurrentHandling(NativeWebRequest request, Callable<T> task) {
if (this.securityContext == null) {
setSecurityContext(this.securityContextHolderStrategy.getContext());
}
}
@Override
//在真正执行异步任务之前，会首先执行该拦截器，就会执行preProcess方法，从而执行setContext设置context
//后续就可以通过getContext方法来获得用户信息
public <T> void preProcess(NativeWebRequest request, Callable<T> task) {
this.securityContextHolderStrategy.setContext(this.securityContext);
}
@Override
public <T> void postProcess(NativeWebRequest request, Callable<T> task, Object concurrentResult) {
this.securityContextHolderStrategy.clearContext();
}
public void setSecurityContextHolderStrategy(SecurityContextHolderStrategy securityContextHolderStrategy) {
Assert.notNull(securityContextHolderStrategy, "securityContextHolderStrategy cannot be null");
this.securityContextHolderStrategy = securityContextHolderStrategy;
}
private void setSecurityContext(SecurityContext securityContext) {
this.securityContext = securityContext;
}
}
HeaderWriterFilter
写响应头，委派给HeaderWriter接口，有很多实现类
public class HeaderWriterFilter extends OncePerRequestFilter {
//维护了很多HeaderWriter
private final List<HeaderWriter> headerWriters;
......
public interface HeaderWriter {
void writeHeaders(HttpServletRequest request, HttpServletResponse response);
}
LogoutFilter
public class LogoutFilter extends GenericFilterBean {
private SecurityContextHolderStrategy securityContextHolderStrategy = SecurityContextHolder
.getContextHolderStrategy();
private RequestMatcher logoutRequestMatcher;
//处理登出时的逻辑
private final LogoutHandler handler;
//处理登出后的逻辑，比如在里面的onLogoutSuccess方法通过参数response响应一个登出成功的状态
private final LogoutSuccessHandler logoutSuccessHandler;
......
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
if (requiresLogout(request, response)) {
Authentication auth = this.securityContextHolderStrategy.getContext().getAuthentication();
if (this.logger.isDebugEnabled()) {
this.logger.debug(LogMessage.format("Logging out [%s]", auth));
}
//把具体逻辑实现交给handler
this.handler.logout(request, response, auth);
this.logoutSuccessHandler.onLogoutSuccess(request, response, auth);
return;
}
chain.doFilter(request, response);
}
......
RequestCacheAwareFilter
一般通过前端来实现。前后端分离项目不会用到该过滤器
作用：复原认证请求之前的信息，比如登录失败后重定向到登录页面，登录成功后复原回上次登录成功时访问的页面
public class RequestCacheAwareFilter extends GenericFilterBean {
//缓存请求信息的接口
private RequestCache requestCache;
public RequestCacheAwareFilter() {
this(new HttpSessionRequestCache());
}
public RequestCacheAwareFilter(RequestCache requestCache) {
Assert.notNull(requestCache, "requestCache cannot be null");
this.requestCache = requestCache;
}
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
HttpServletRequest wrappedSavedRequest = this.requestCache.getMatchingRequest((HttpServletRequest) request,
(HttpServletResponse) response);
chain.doFilter((wrappedSavedRequest != null) ? wrappedSavedRequest : request, response);
}
}
SecurityContextHolderAwareRequestFilter
实现了HttpServletRequest中一些标准的获取认证信息的方法，通过包装器的模式来实现
doFilter方法
@Override
public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
throws IOException, ServletException {
chain.doFilter(this.requestFactory.create((HttpServletRequest) req, (HttpServletResponse) res), res);
}
doFilter方法中替换了req为this.requestFactory.create((HttpServletRequest) req, (HttpServletResponse) res)
create方法
定义在HttpServletRequestFactory接口
interface HttpServletRequestFactory {
HttpServletRequest create(HttpServletRequest request, HttpServletResponse response);
}
该方法在HttpServlet3RequestFactory类中有唯一实现
@Override
public HttpServletRequest create(HttpServletRequest request, HttpServletResponse response) {
//1️⃣一个wapper包装类
Servlet3SecurityContextHolderAwareRequestWrapper wrapper = new Servlet3SecurityContextHolderAwareRequestWrapper(
request, this.rolePrefix, response);
wrapper.setSecurityContextHolderStrategy(this.securityContextHolderStrategy);
return wrapper;
}
1️⃣Servlet3SecurityContextHolderAwareRequestWrapper
继承了SecurityContextHolderAwareRequestWrapper
SecurityContextHolderAwareRequestWrapper包装器包装了HttpServletRequest接口中的一些方法，如：
@Override
public String getRemoteUser() {
Authentication auth = getAuthentication();
if ((auth == null) || (auth.getPrincipal() == null)) {
return null;
}
if (auth.getPrincipal() instanceof UserDetails) {
return ((UserDetails) auth.getPrincipal()).getUsername();
}
if (auth instanceof AbstractAuthenticationToken) {
return auth.getName();
}
return auth.getPrincipal().toString();
}
@Override
public Principal getUserPrincipal() {
Authentication auth = getAuthentication();
if ((auth == null) || (auth.getPrincipal() == null)) {
return null;
}
return auth;
}
private boolean isGranted(String role) {
Authentication auth = getAuthentication();
if (this.rolePrefix != null && role != null && !role.startsWith(this.rolePrefix)) {
role = this.rolePrefix + role;
}
if ((auth == null) || (auth.getPrincipal() == null)) {
return false;
}
Collection<? extends GrantedAuthority> authorities = auth.getAuthorities();
if (authorities == null) {
return false;
}
for (GrantedAuthority grantedAuthority : authorities) {
if (role.equals(grantedAuthority.getAuthority())) {
return true;
}
}
return false;
}
AnonymousAuthenticationFilter
@Override
public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
throws IOException, ServletException {
Supplier<SecurityContext> deferredContext = this.securityContextHolderStrategy.getDeferredContext();
this.securityContextHolderStrategy
.setDeferredContext(defaultWithAnonymous((HttpServletRequest) req, deferredContext));
chain.doFilter(req, res);
}
private Supplier<SecurityContext> defaultWithAnonymous(HttpServletRequest request,
Supplier<SecurityContext> currentDeferredContext) {
return SingletonSupplier.of(() -> {
SecurityContext currentContext = currentDeferredContext.get();
return defaultWithAnonymous(request, currentContext);
});
}
private SecurityContext defaultWithAnonymous(HttpServletRequest request, SecurityContext currentContext) {
Authentication currentAuthentication = currentContext.getAuthentication();
//1️⃣如果Authentication==null，就createAuthentication方法创建一个
if (currentAuthentication == null) {
Authentication anonymous = createAuthentication(request);
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.of(() -> "Set SecurityContextHolder to " + anonymous));
}
else {
this.logger.debug("Set SecurityContextHolder to anonymous SecurityContext");
}
SecurityContext anonymousContext = this.securityContextHolderStrategy.createEmptyContext();
anonymousContext.setAuthentication(anonymous);
return anonymousContext;
}
else {
if (this.logger.isTraceEnabled()) {
this.logger.trace(LogMessage.of(() -> "Did not set SecurityContextHolder since already authenticated "
+ currentAuthentication));
}
}
return currentContext;
}
1️⃣核心方法createAuthentication
protected Authentication createAuthentication(HttpServletRequest request) {
AnonymousAuthenticationToken token = new AnonymousAuthenticationToken(this.key, this.principal,
this.authorities);
token.setDetails(this.authenticationDetailsSource.buildDetails(request));
return token;
}
匿名、认证和完全认证
AnonymousAuthenticationToken为匿名认证
用户通过rememberMe来进行认证登录为认证；用户通过用户名和密码进行认证登录为完全认证
ExceptionTranslationFilter
doFilter方法
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
doFilter((HttpServletRequest) request, (HttpServletResponse) response, chain);
}
private void doFilter(HttpServletRequest request, HttpServletResponse response, FilterChain chain)
throws IOException, ServletException {
try {
//该类只会捕获异常并处理，不会干涉逻辑
chain.doFilter(request, response);
}
catch (IOException ex) {
throw ex;
}
catch (Exception ex) {
// Try to extract a SpringSecurityException from the stacktrace
Throwable[] causeChain = this.throwableAnalyzer.determineCauseChain(ex);
//用RuntimeException来接受，RuntimeException是这些异常的父类
RuntimeException securityException = (AuthenticationException) this.throwableAnalyzer
.getFirstThrowableOfType(AuthenticationException.class, causeChain);
if (securityException == null) {
securityException = (AccessDeniedException) this.throwableAnalyzer
.getFirstThrowableOfType(AccessDeniedException.class, causeChain);
}
if (securityException == null) { //如果不是上述两种异常，直接再次抛出
rethrow(ex);
}
if (response.isCommitted()) { //如果已经提交，直接抛异常
throw new ServletException("Unable to handle the Spring Security Exception "
+ "because the response is already committed.", ex);
}
//真正处理上述两种异常的方法
handleSpringSecurityException(request, response, chain, securityException);
}
}
handleSpringSecurityException方法
private void handleSpringSecurityException(HttpServletRequest request, HttpServletResponse response,FilterChain chain, RuntimeException exception) throws IOException, ServletException {
if (exception instanceof AuthenticationException) { //1️⃣如果是AuthenticationException
handleAuthenticationException(request, response, chain, (AuthenticationException) exception);
}
else if (exception instanceof AccessDeniedException) { //2️⃣如果是AccessDeniedException
handleAccessDeniedException(request, response, chain, (AccessDeniedException) exception);
}
}
1️⃣如果是AuthenticationException
//1️⃣
private void handleAuthenticationException(HttpServletRequest request, HttpServletResponse response, FilterChain chain, AuthenticationException exception) throws ServletException, IOException {
this.logger.trace("Sending to authentication entry point since authentication failed", exception);
//3️⃣
sendStartAuthentication(request, response, chain, exception);
}
3️⃣sendStartAuthentication
protected void sendStartAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain,
AuthenticationException reason) throws ServletException, IOException {
// SEC-112: Clear the SecurityContextHolder's Authentication, as the
// existing Authentication is no longer considered valid
SecurityContext context = this.securityContextHolderStrategy.createEmptyContext();
this.securityContextHolderStrategy.setContext(context);
//保存下来request，因为认证的时候往往会重定向到其他url
this.requestCache.saveRequest(request, response);
this.authenticationEntryPoint.commence(request, response, reason);
}
关于this.authenticationEntryPoint.commence：进行跳转并认证
2️⃣如果是AccessDeniedException
//2️⃣
private void handleAccessDeniedException(HttpServletRequest request, HttpServletResponse response, FilterChain chain, AccessDeniedException exception) throws ServletException, IOException {
Authentication authentication = this.securityContextHolderStrategy.getContext().getAuthentication();
boolean isAnonymous = this.authenticationTrustResolver.isAnonymous(authentication);
//如果是匿名token或者是rememberMe的token，就直接调用sendStartAuthentication（见3️⃣）进行跳转到认证入口
if (isAnonymous || this.authenticationTrustResolver.isRememberMe(authentication)) {
if (logger.isTraceEnabled()) {
logger.trace(LogMessage.format("Sending %s to authentication entry point since access is denied", authentication), exception);
}
sendStartAuthentication(request, response, chain, new InsufficientAuthenticationException( this.messages.getMessage("ExceptionTranslationFilter.insufficientAuthentication", "Full authentication is required to access this resource")));
}
else { //如果不是，则为访问被拒绝403，权限不够
if (logger.isTraceEnabled()) {
logger.trace(
LogMessage.format("Sending %s to access denied handler since access is denied", authentication),
exception);
}
//4️⃣调用accessDeniedHandler.handle方法
this.accessDeniedHandler.handle(request, response, exception);
}
}
AccessDeniedHandler：访问被拒绝的处理器
AuthenticationEntryPoint
认证的入口。
即在没有认证的情况下，直接将页面转到认证页面或者返回未认证的信息并让前端转到认证页面。
public interface AuthenticationEntryPoint {
void commence(HttpServletRequest request, HttpServletResponse response, AuthenticationException authException) throws IOException, ServletException;
}
在前后端分离的项目中，commence方法更多的是返回一段json到前端，告诉前端该用户没有认证，前端实现重定向到认证界面。
AccessDeniedHandler
public interface AccessDeniedHandler {
void handle(HttpServletRequest request, HttpServletResponse response, AccessDeniedException accessDeniedException) throws IOException, ServletException;
}
一般情况下自己实现
前后端分离的项目一般回返回一个json，提示没有权限
DefaultSecurityFilterChain中filter注入的时机
我们在config类中只配置了
@Bean
public DefaultSecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
http.formLogin();
return http.build();
}
那DefaultSecurityFilterChain中这么多filter是什么时候加进来的？
HttpSecurityConfiguration
@Bean(HTTPSECURITY_BEAN_NAME)
@Scope("prototype")
HttpSecurity httpSecurity() throws Exception {
LazyPasswordEncoder passwordEncoder = new LazyPasswordEncoder(this.context);
AuthenticationManagerBuilder authenticationBuilder = new DefaultPasswordEncoderAuthenticationManagerBuilder(
this.objectPostProcessor, passwordEncoder);
authenticationBuilder.parentAuthenticationManager(authenticationManager());
authenticationBuilder.authenticationEventPublisher(getAuthenticationEventPublisher());
HttpSecurity http = new HttpSecurity(this.objectPostProcessor, authenticationBuilder, createSharedObjects()); //createSharedObjects()方法中把ApplicationContext放进了sharedObjects map
WebAsyncManagerIntegrationFilter webAsyncManagerIntegrationFilter = new WebAsyncManagerIntegrationFilter();
webAsyncManagerIntegrationFilter.setSecurityContextHolderStrategy(this.securityContextHolderStrategy);
// @formatter:off
//默认filter在这个地方配置
//如果不需要这些默认配置，要在config类中手动禁用
http
.csrf(withDefaults())
.addFilter(webAsyncManagerIntegrationFilter)
.exceptionHandling(withDefaults())
.headers(withDefaults())
.sessionManagement(withDefaults())
.securityContext(withDefaults())
.requestCache(withDefaults())
.anonymous(withDefaults())
.servletApi(withDefaults())
.apply(new DefaultLoginPageConfigurer<>());
http.logout(withDefaults());
// @formatter:on
applyDefaultConfigurers(http); //与sringboot相关的加载的一些
return http;
}
private void applyDefaultConfigurers(HttpSecurity http) throws Exception {
ClassLoader classLoader = this.context.getClassLoader();
List<AbstractHttpConfigurer> defaultHttpConfigurers = SpringFactoriesLoader
.loadFactories(AbstractHttpConfigurer.class, classLoader);
for (AbstractHttpConfigurer configurer : defaultHttpConfigurers) {
http.apply(configurer);
}
}
DefaultSecurityFilterChain在WebSecurityConfiguration中被使用
WebSecurityConfiguration
维护了securityFilterChains属性，并通过set方法注入
private List<SecurityFilterChain> securityFilterChains = Collections.emptyList();
@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
public Filter springSecurityFilterChain() throws Exception {
boolean hasFilterChain = !this.securityFilterChains.isEmpty();
if (!hasFilterChain) {
this.webSecurity.addSecurityFilterChainBuilder(() -> {
this.httpSecurity.authorizeHttpRequests((authorize) -> authorize.anyRequest().authenticated());
this.httpSecurity.formLogin(Customizer.withDefaults());
this.httpSecurity.httpBasic(Customizer.withDefaults());
return this.httpSecurity.build();
});
}
for (SecurityFilterChain securityFilterChain : this.securityFilterChains) {
this.webSecurity.addSecurityFilterChainBuilder(() -> securityFilterChain);
}
for (WebSecurityCustomizer customizer : this.webSecurityCustomizers) {
customizer.customize(this.webSecurity);
}
return this.webSecurity.build(); //此处调用了WebSecurity的build方法
}
生成一个Filter，即一个FilterChainProxy
DEFAULT_FILTER_NAME的值为springSecurityFilterChain，即其beanName
这个filter被DelegatingFilterProxy使用
DelegatingFilterProxy
属于包org.springframework.web.filter
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
// Lazily initialize the delegate if necessary.
Filter delegateToUse = this.delegate;
if (delegateToUse == null) {
//双重检查锁
synchronized (this.delegateMonitor) {
delegateToUse = this.delegate;
if (delegateToUse == null) {
//拿到 WebApplicationContext
WebApplicationContext wac = findWebApplicationContext();
if (wac == null) {
throw new IllegalStateException("No WebApplicationContext found: " +
"no ContextLoaderListener or DispatcherServlet registered?");
}
//1️⃣通过 initDelegate方法拿到filter
delegateToUse = initDelegate(wac);
}
this.delegate = delegateToUse;
}
}
// Let the delegate perform the actual doFilter operation.
invokeDelegate(delegateToUse, request, response, filterChain);
}
1️⃣initDelegate方法
protected Filter initDelegate(WebApplicationContext wac) throws ServletException {
String targetBeanName = getTargetBeanName(); //此 TargetBeanName即springSecurityFilterChain
Assert.state(targetBeanName != null, "No target bean name set");
//WebApplicationContext的getBean方法拿到filter
Filter delegate = wac.getBean(targetBeanName, Filter.class);
if (isTargetFilterLifecycle()) {
delegate.init(getFilterConfig());
}
return delegate;
}
DispatcherServlet是tomcat里面的最主要的servlet，在到达该servlet之前会执行一堆的filter，DelegatingFilterProxy就是其中的一个
DelegatingFilterProxy执行的是WebSecurityConfiguration构建出的springSecurityFilterChain，即一个FilterChainProxy
其中filterChains属性包含了一个或多个filterChain（一般只有一个），比如DefaultFilterChain。
SpringSecurity从tomcat执行下来的过程
config类中在public DefaultSecurityFilterChain securityFilterChain(HttpSecurity http)方法中配置过滤器，构建成SecurityFilterChain来返回，
在WebSecurityConfiguration中，通过@Autowired注入SecurityFilterChain，在springSecurityFilterChain方法中通过WebSecurity构建出一个FilterChainProxy，命名为springSecurityFilterChain，
springSecurityFilterChain通过DelegatingFilterProxy添加到tomcat最原生的filter列表中，
然后通过doFilter方法 -> invokeDelegate方法真正执行
SpringSecurity顶层流程
DelegatingFilterProxy -> FilterChainProxy -> SecurityFilterChain -> 具体的Filter
HttpSecurityConfiguration配置了基础的HttpSecurity对象以供我们注入使用
WebSecurityConfiguration注入了我们自己的SecurityFilterChainBean然后添加到WebSecurity中
最终由WebSecurity构建出FilterChainProxy来执行SpringSecurity的过滤逻辑
